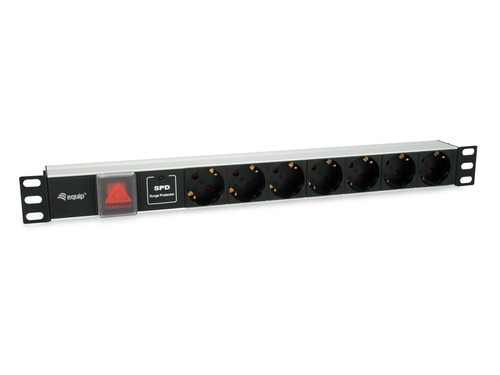

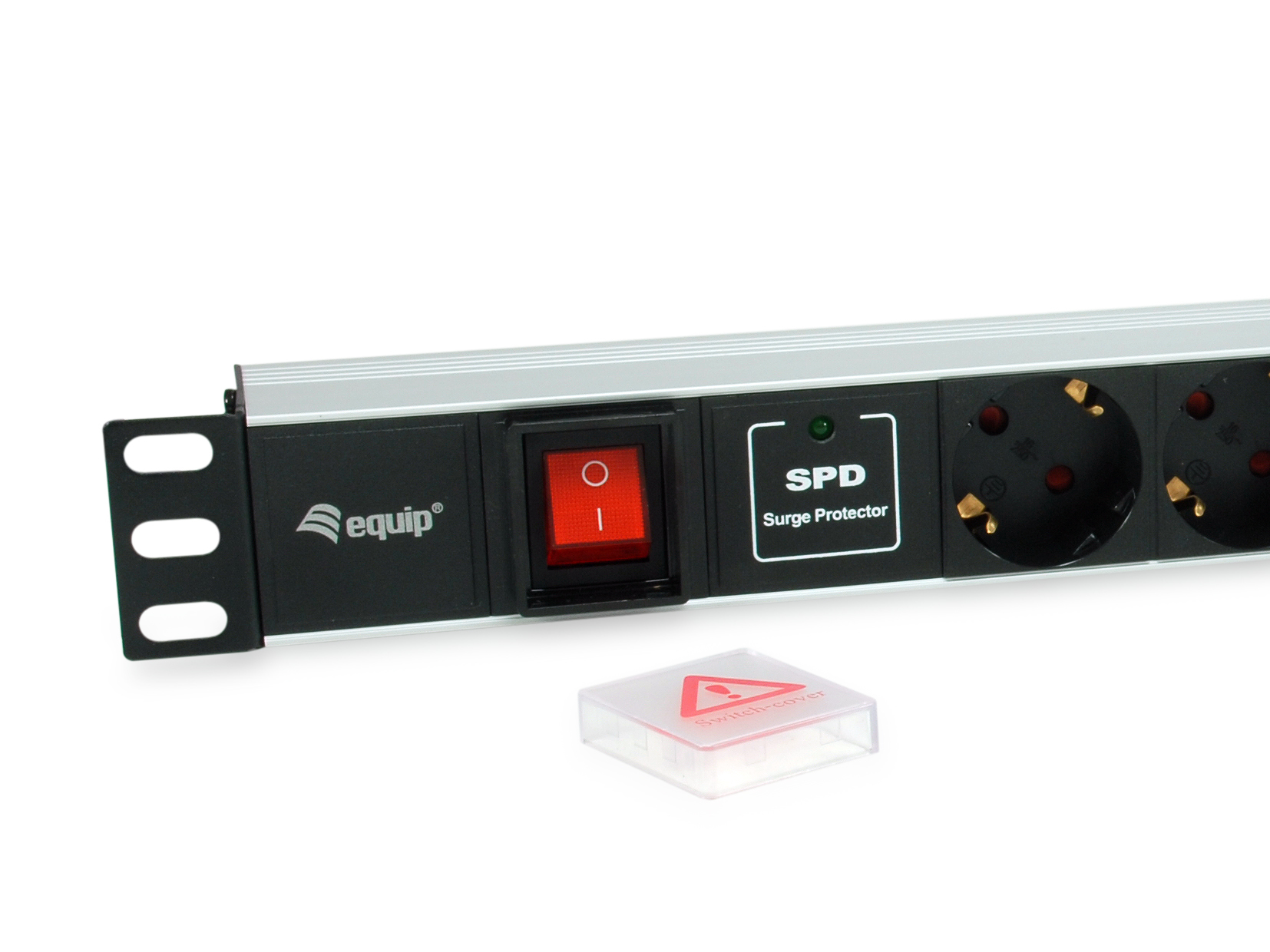

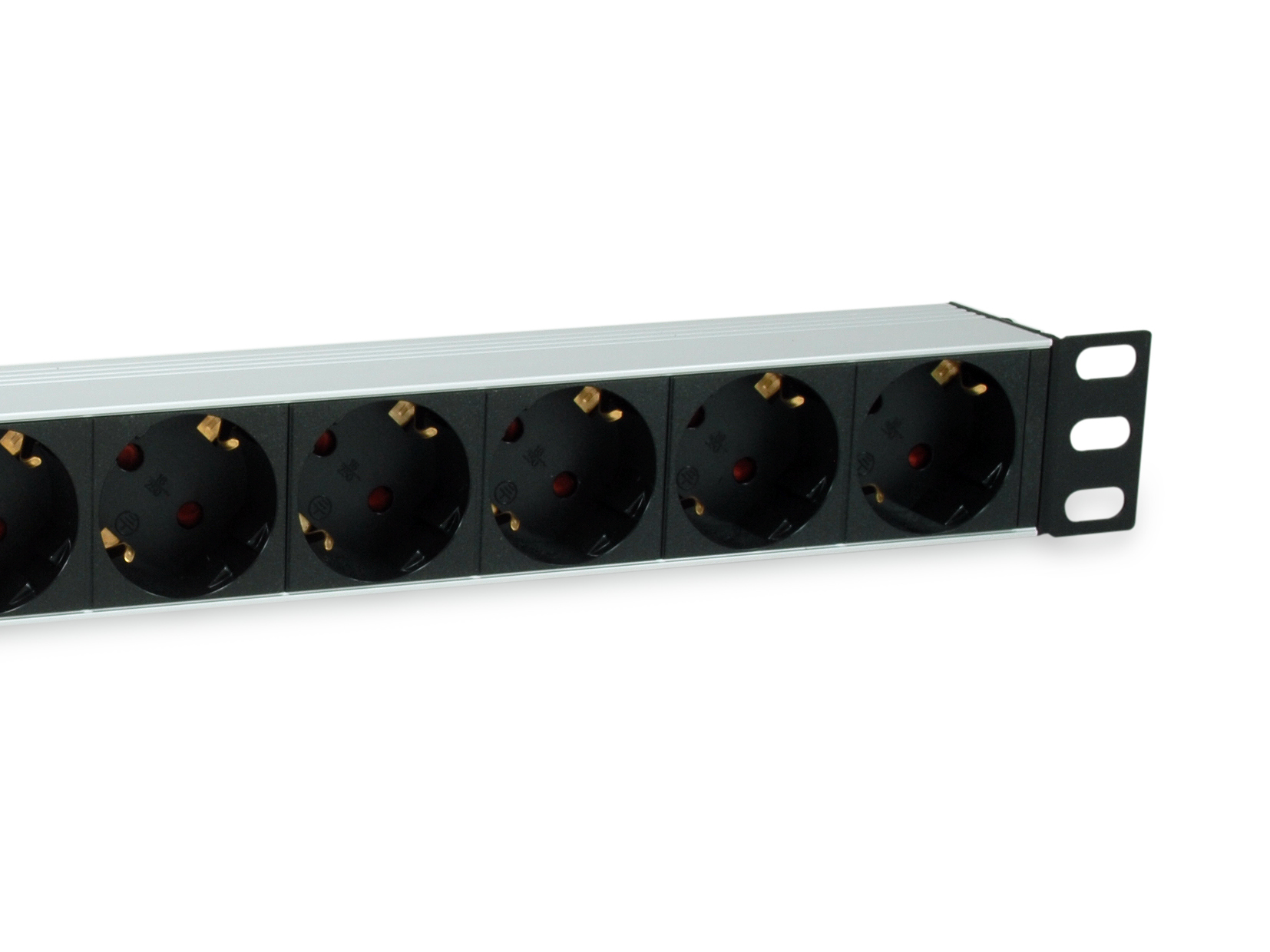

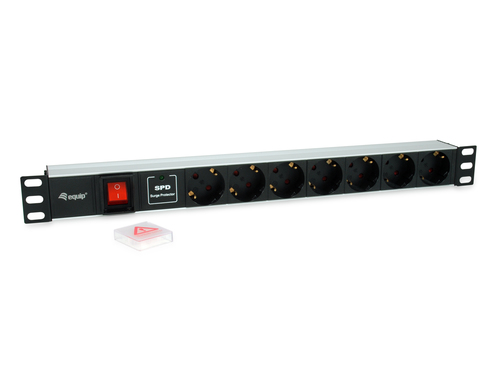

7-Outlet German Power Distribution Unit with Surge Protection and Switch
Model 333309Part no. 33330907201EAN 4015867227367
28 specifications
- Power3500 W
- Weight790 g
- ColourBlack, Silver
- Rack capacity1U
- AC outlets quantity7 AC outlet(s)
- Cable length1.8 m
Overview
- Power
- 3500 W
- Weight
- 790 g
- Colour
- Black, Silver
- Rack capacity
- 1U
- AC outlets quantity
- 7 AC outlet(s)
- Cable length
- 1.8 m
- Brand
- Equip
- Category
- Power Distribution Units (PDUs)
- Model
- 333309
- Part number
- 33330907201
- EAN / UPC
- 4015867227367
- Also known as
- Equip 7-Outlet German Power Distribution Unit with Surge Protection and Switch
Specifications
28 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Housing material | Aluminium |
| Product colour | Black, Silver |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 7 AC outlet(s) |
| Power plug | Type F |
| AC outlet types | Type F |
Features
| Specification | Value |
|---|---|
| Cable length | 1.8 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 250 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Maximum power | 3500 W |
| Surge protection | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 45 mm |
| Depth | 45 mm |
| Height | 482.6 mm |
| Weight | 790 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 920 g |
| Package width | 90 mm |
| Package depth | 60 mm |
| Package height | 515 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case width | 305 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 520 mm |
| Master (outer) case gross weight | 24 kg |
| Products per master (outer) case | 25 pc(s) |
