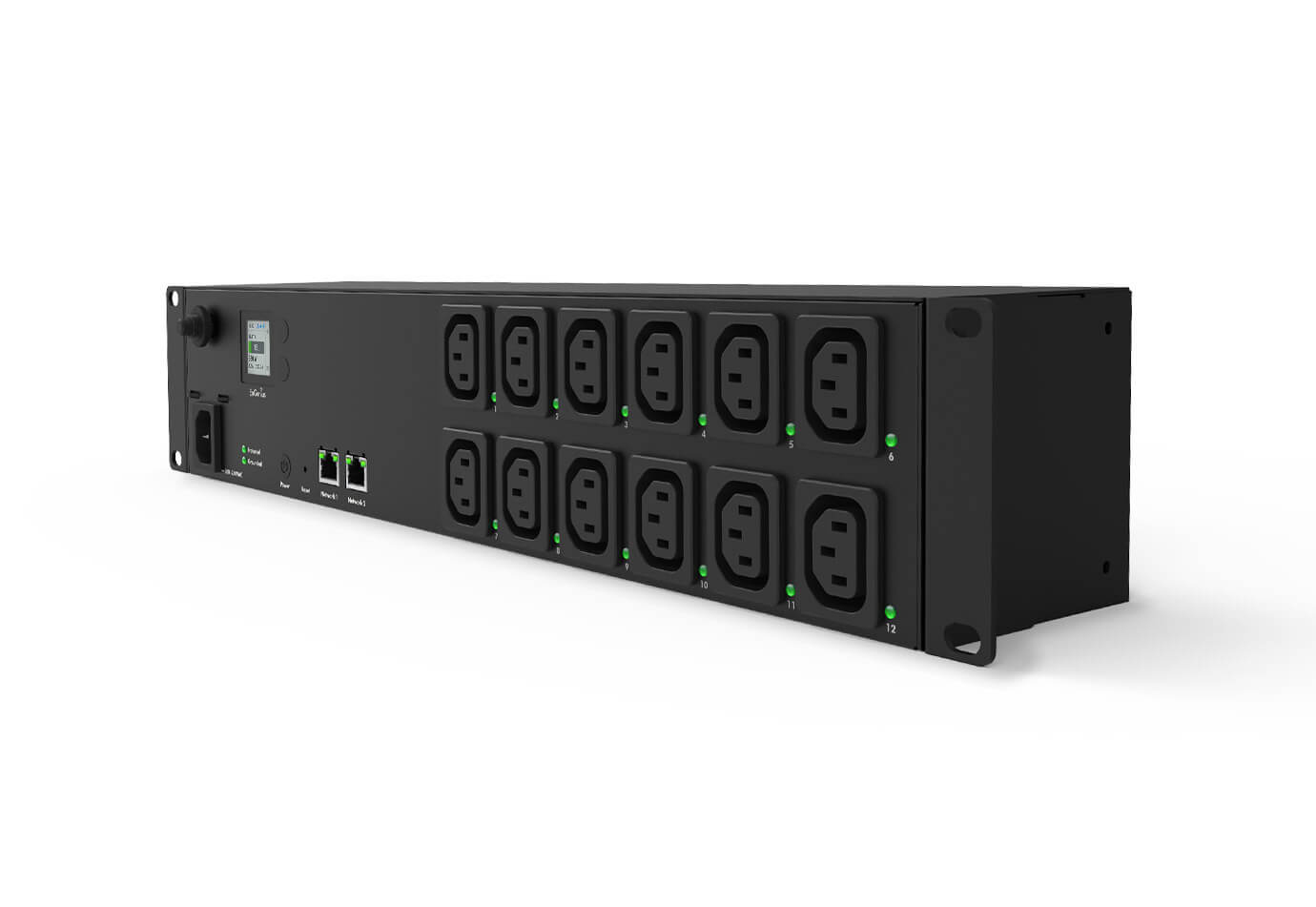

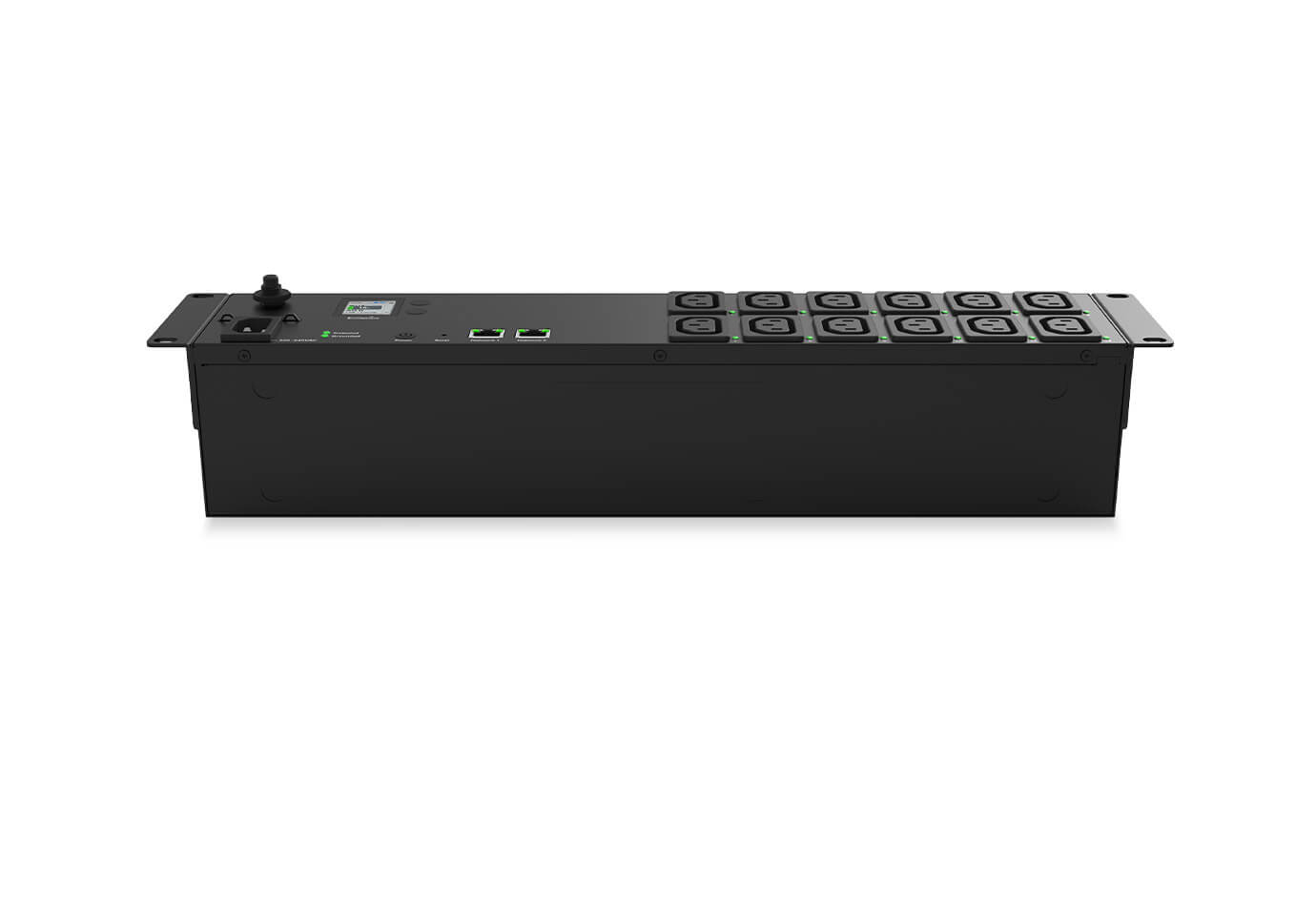

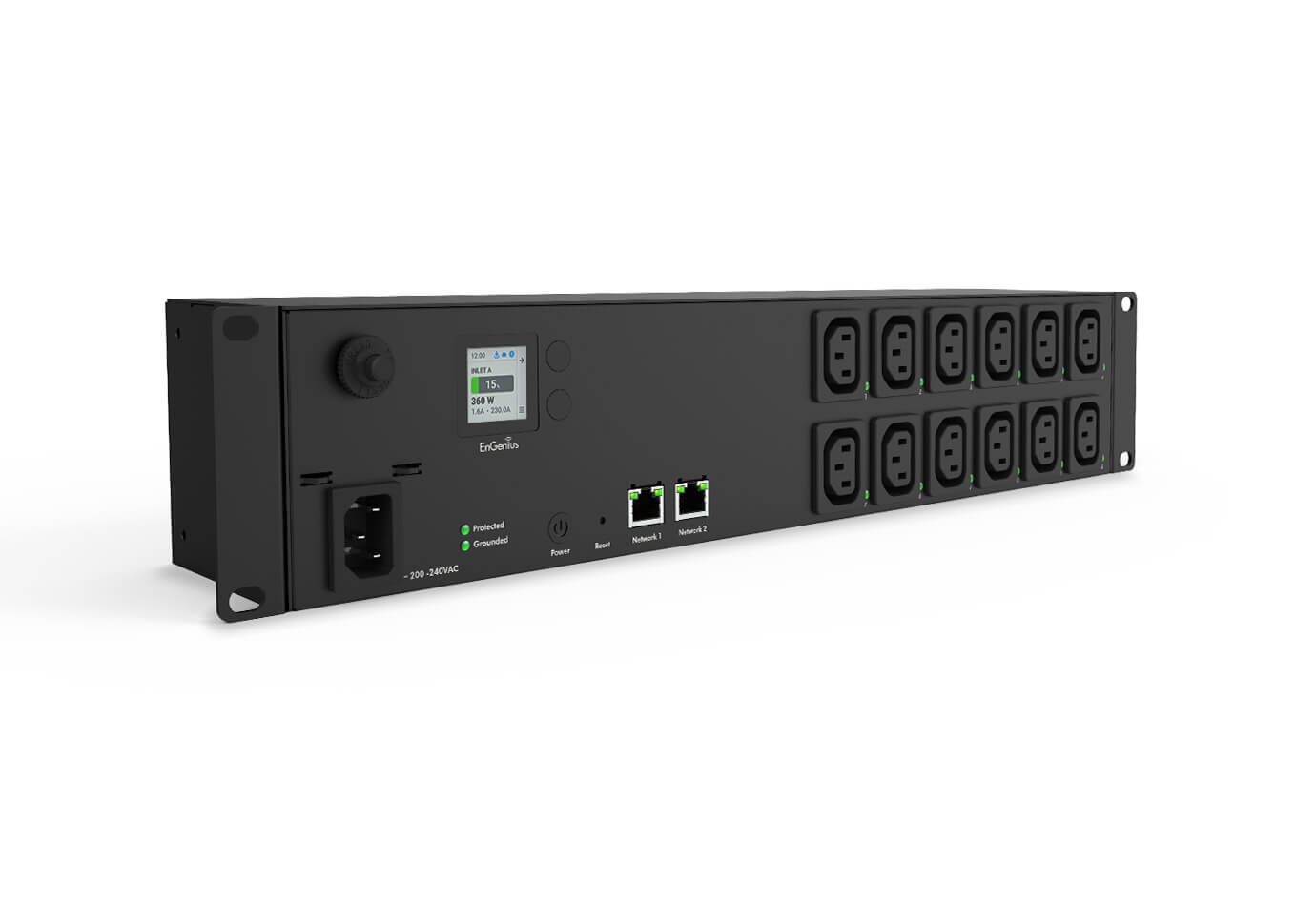

Cloud Managed 2U 10A Smart PDU with 12 Metered Outlets
Model ECP212-INTEAN 4711488351725
45 specifications
- Power2400 W
- Weight2.46 kg
- ColourBlack
- PDU typesManaged
- AC outlets quantity12 AC outlet(s)
- Reset buttonYes
Overview
- Power
- 2400 W
- Weight
- 2.46 kg
- Colour
- Black
- PDU types
- Managed
- AC outlets quantity
- 12 AC outlet(s)
- Reset button
- Yes
- Brand
- EnGenius
- Category
- Power Distribution Units (PDUs)
- Model
- ECP212-INT
- Part number
- ECP212-INT
- EAN / UPC
- 4711488351725
- Also known as
- EnGenius Cloud Managed 2U 10A Smart PDU with 12 Metered Outlets
Specifications
45 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Managed |
| Rack capacity | 2U |
| Housing material | SECC |
| Product colour | Black |
| Display | LCD |
| On/off switch | Yes |
| Illuminated on/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
| Input connection type | H05VV-F 3G |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 1.83 m |
| Cable type | CEE 7-VII |
Management features
| Specification | Value |
|---|---|
| Monitoring | Power |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 10 A |
| Block 1 output current | 12 A |
| Output voltage | 200 - 240 V |
| Maximum power | 2400 W |
| Power protection features | Surge protection |
| Surge protection | Yes |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RCM, RoHS, WEEE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 10.9 mm |
| Height | 88 mm |
| Weight | 2.46 kg |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 1 – ECP212-INT PDU 1 – Inlet Power Cord 2 – C14 to C13 Plug Adapter 1 – Mounting Brackets 4 – Rubber Feet Cushion 8 – M4x6 Screws 4 – T4x19 Screws 4 – Spacer 1 –Drywall Anchor Kit 1 –Retention Clip |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.3 kg |
| Package width | 591 mm |
| Package depth | 193 mm |
| Package height | 214 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 17.2 kg |
| Master (outer) case width | 448 mm |
| Master (outer) case length | 609 mm |
| Master (outer) case height | 416 mm |
| Master (outer) case gross weight | 11.9 kg |
| Products per master (outer) case | 4 pc(s) |
