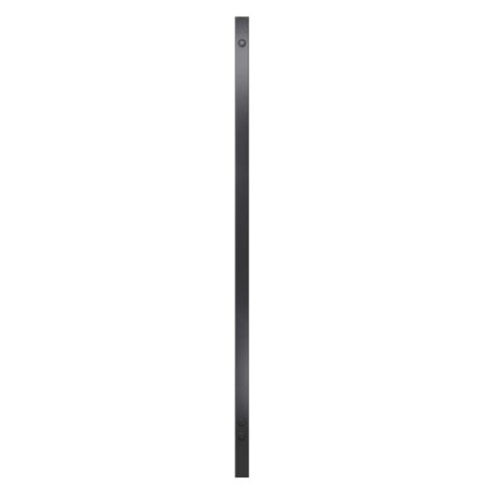

AB555865 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model AB555865
32 specifications
- TypeSingle-phase
- Weight5.61 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity24 AC outlet(s)
- Daisy chainYes
Overview
- Type
- Single-phase
- Weight
- 5.61 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 24 AC outlet(s)
- Daisy chain
- Yes
- Brand
- Dell
- Category
- Power Distribution Units (PDUs)
- Model
- AB555865
- Part number
- AB555865
- Also known as
- DELL AB555865 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
32 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
| Load capacity | 3700 VA |
| Maximum input current per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | EN 61000-3-2, ICES-003, VDE, EN 61000-3-3, EN55024, FCC 15 A, EAC, RCM, EN 55022 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 46 mm |
| Height | 1794 mm |
| Weight | 5.61 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.59 kg |
| Package width | 165 mm |
| Package depth | 114 mm |
| Package height | 2002 mm |
