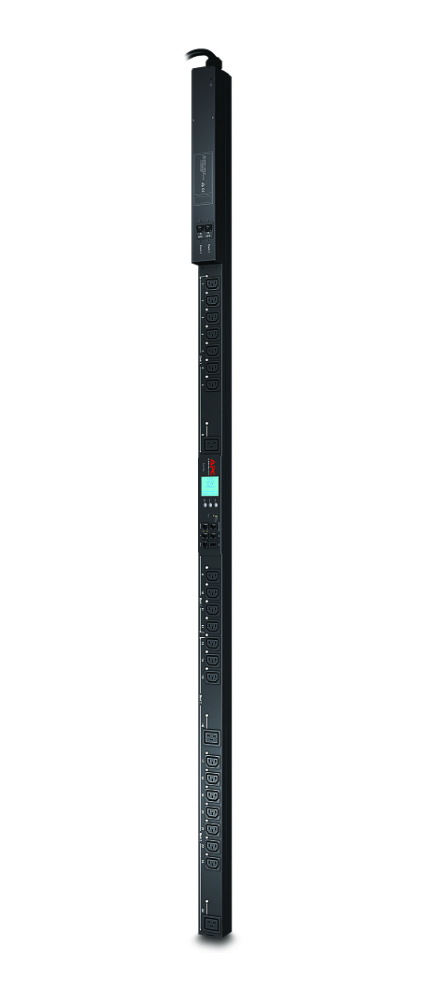

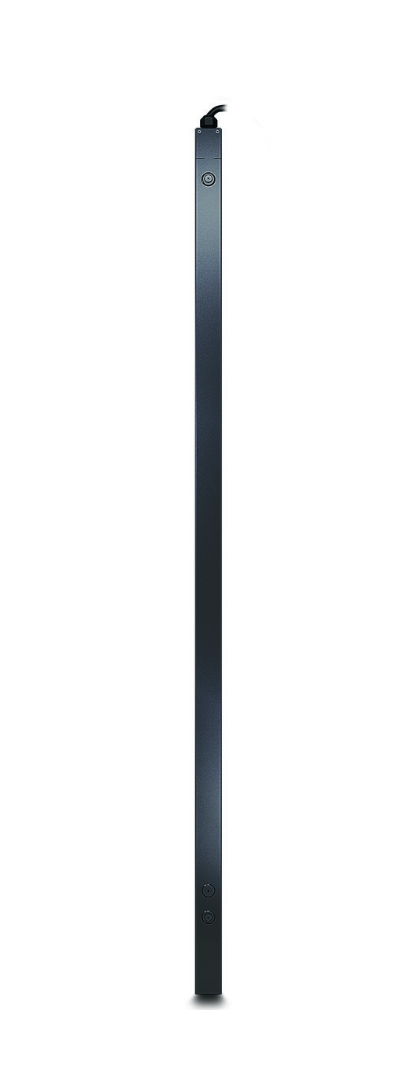

A7057170 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model A7057170
25 specifications
- Weight8.2 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity24 AC outlet(s)
- Supported network protocolsSNMP, Telnet, HTTP
- Nominal input voltage200/208/230 V
Overview
- Weight
- 8.2 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 24 AC outlet(s)
- Supported network protocols
- SNMP, Telnet, HTTP
- Nominal input voltage
- 200/208/230 V
- Brand
- Dell
- Category
- Power Distribution Units (PDUs)
- Model
- A7057170
- Part number
- A7057170
- Also known as
- DELL A7057170 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
25 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Rack capacity | 0U |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Compatible products | AR3100, AR3150, SUA5000RMI5U, SURT1000XLI, SURT2000XLI |
Management features
| Specification | Value |
|---|---|
| Supported network protocols | SNMP, Telnet, HTTP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200/208/230 V |
| Output voltage | 230 V |
| Power protection features | Overload |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EN 61000-3-2, VDE, EN 61000-3-3, EN55024, EN55022 Class A, REACH |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 51 mm |
| Height | 183 mm |
| Weight | 8.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Serial |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.5 kg |
| Package width | 162 mm |
| Package depth | 118 mm |
| Package height | 204 mm |
