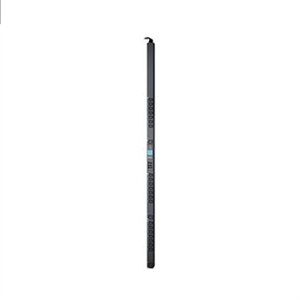

A6783202 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model A6783202
30 specifications
- TypeThree-phase
- Weight8.23 kg
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity24 AC outlet(s)
- Cable length1.83 m
Overview
- Type
- Three-phase
- Weight
- 8.23 kg
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 1.83 m
- Brand
- Dell
- Category
- Power Distribution Units (PDUs)
- Model
- A6783202
- Part number
- A6783202
- Also known as
- DELL A6783202 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
30 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 1.83 m |
| Compatible products | AR3100, AR3150, SMX3000RMHV2UNC |
Management features
| Specification | Value |
|---|---|
| Monitoring | Voltage |
| Firmware upgradeable | Yes |
| Management protocols | SNMP, Telnet, HTTP, HTTPS, SSH, CLI |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Output voltage | 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 8.23 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Serial |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.5 kg |
| Package width | 162 mm |
| Package depth | 117 mm |
| Package height | 2038 mm |
