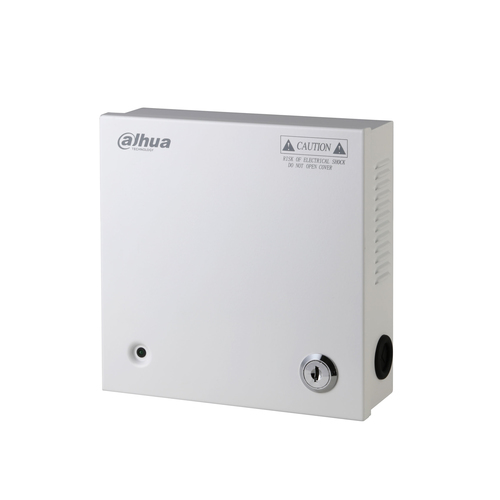

PFM341-9CH power distribution unit (PDU) 0 AC outlet(s) White
Model PFM341-9CH
18 specifications
- Weight900 g
- ColourWhite
- PDU typesBasic
- AC outlets quantity0 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage90 - 264 V
Overview
- Weight
- 900 g
- Colour
- White
- PDU types
- Basic
- AC outlets quantity
- 0 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 90 - 264 V
- Brand
- Dahua Technology
- Category
- Power Distribution Units (PDUs)
- Model
- PFM341-9CH
- Part number
- PFM341-9CH
- Also known as
- Dahua Technology PFM341-9CH power distribution unit (PDU) 0 AC outlet(s) White
Specifications
18 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | White |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 0 AC outlet(s) |
| Output connections | 9 x 12VDC |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 90 - 264 V |
| Maximum current | 5 A |
| Output voltage | 12 V |
| Surge protection | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE/FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 165 mm |
| Height | 50 mm |
| Weight | 900 g |
