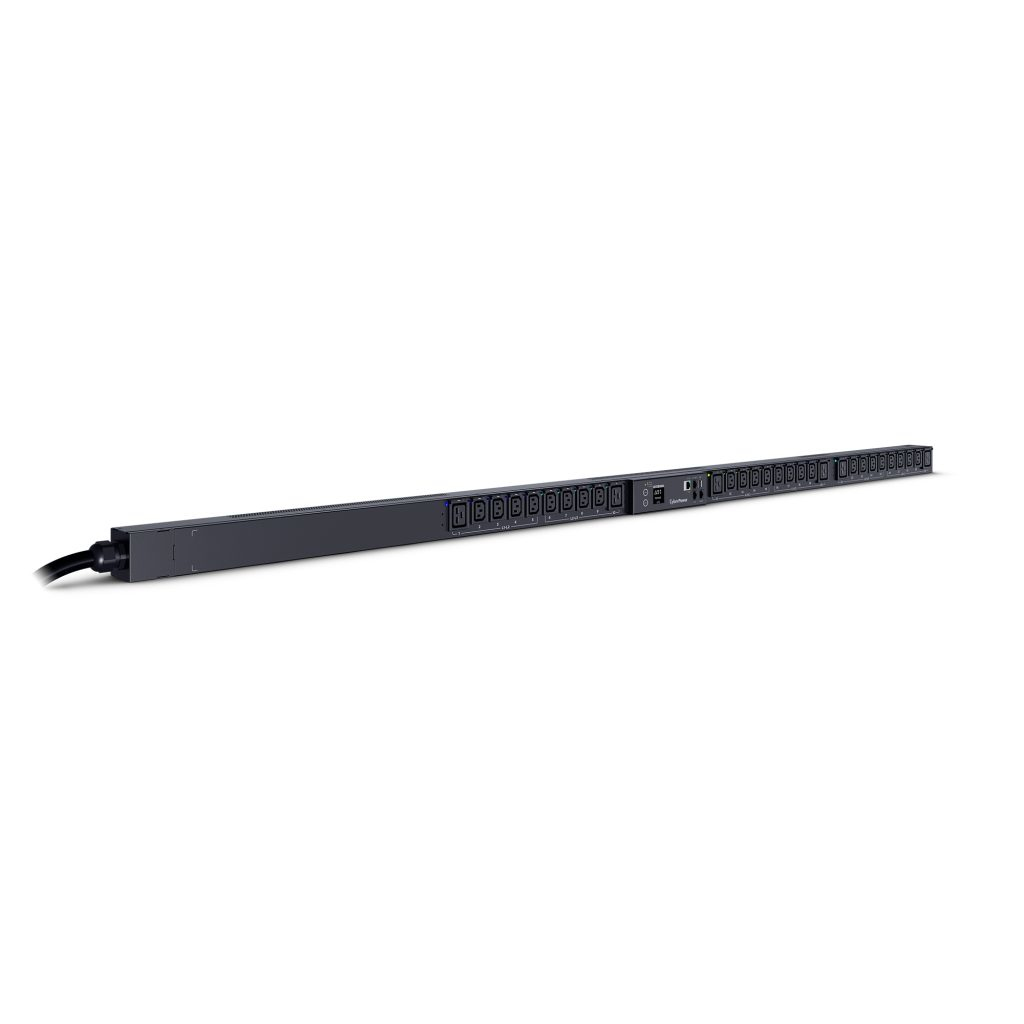

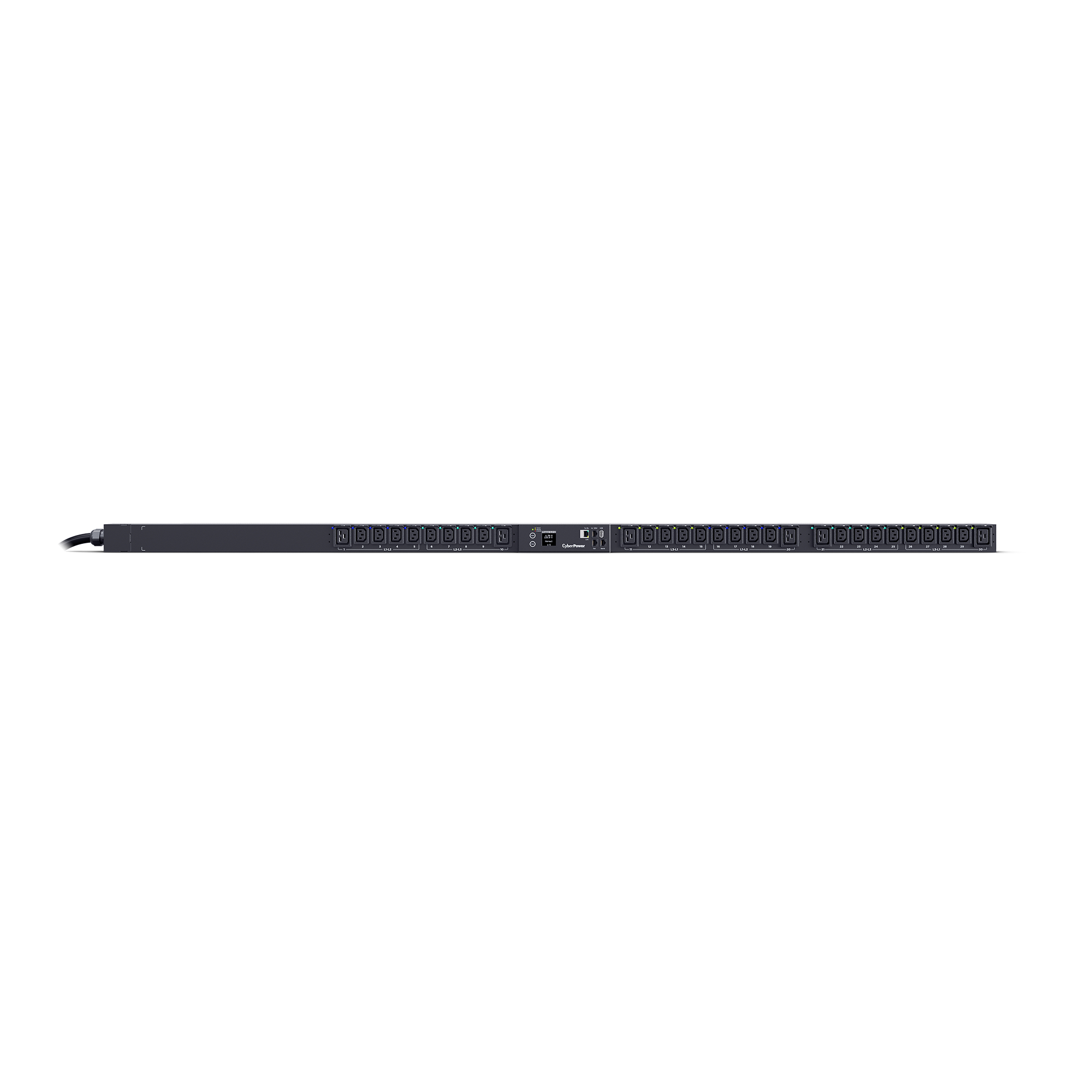

PDU83103 power distribution unit (PDU) 30 AC outlet(s) 0U
Model PDU83103EAN 649532622184
33 specifications
- TypeThree-phase
- Weight6.3 kg
- PDU typesMetered
- AC outlets quantity30 AC outlet(s)
- Cable length3 m
- MonitoringCurrent, Voltage
Overview
- Type
- Three-phase
- Weight
- 6.3 kg
- PDU types
- Metered
- AC outlets quantity
- 30 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Current, Voltage
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU83103
- Part number
- PDU83103
- EAN / UPC
- 649532622184
- Also known as
- CyberPower PDU83103 power distribution unit (PDU) 30 AC outlet(s) 0U
Specifications
33 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |

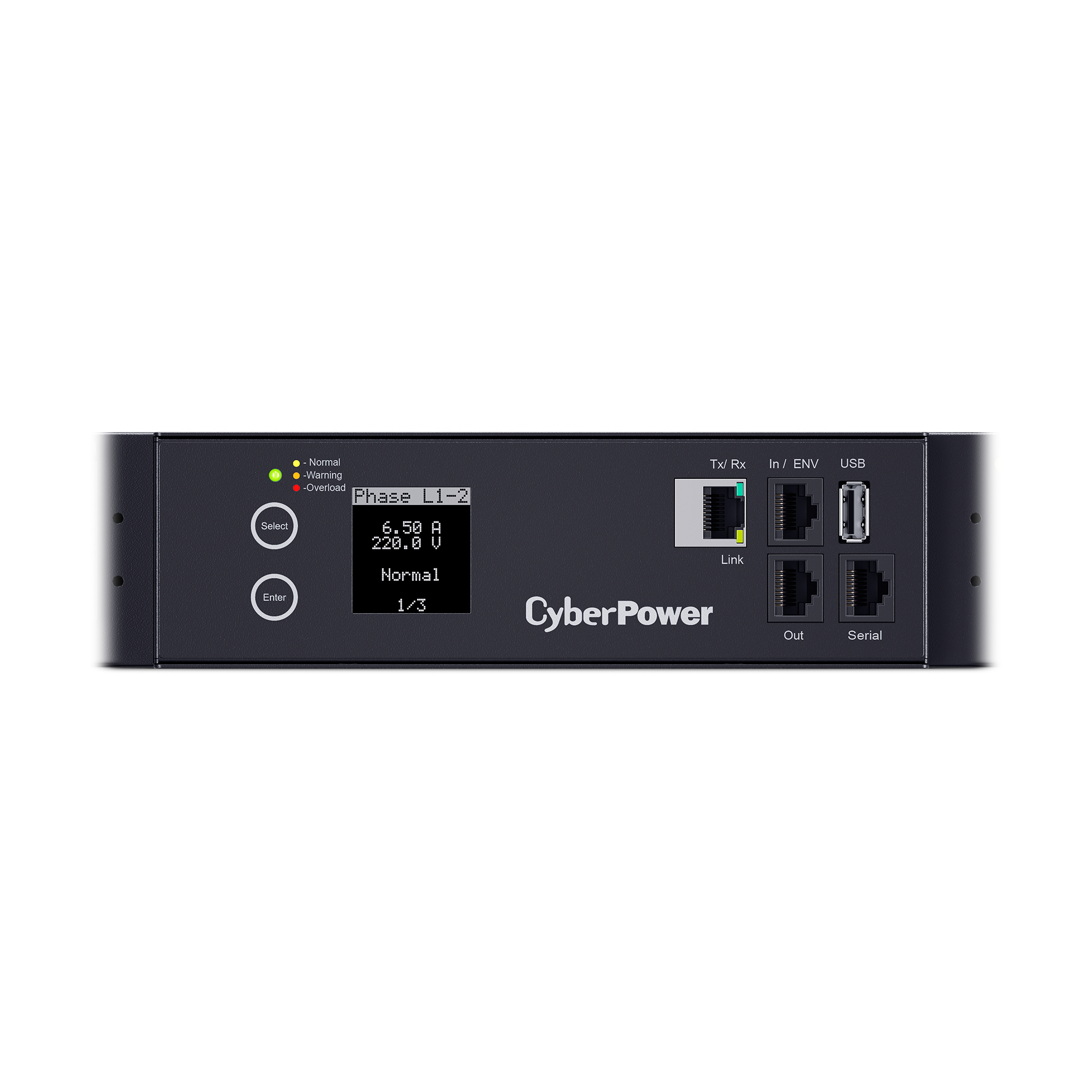

| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| Power plug | IEC 320 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Voltage |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | USB |
| Management protocols | UDP, Syslog, CLI, Windows AD |
| Supported network protocols | IPv4, IPv6, HTTP, TLS, DNS, TCP/IP, DHCP, FTP, SNMPv1, NTP, Telnet, SMTP, SNMPv3, HTTPs, SSH, SSL, LDAP(S), RADIUS |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3500 m |
| Operating temperature (T-T) | 23 - 140 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 56 mm |
| Height | 1791 mm |
| Weight | 6.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Rack mount kit | Yes |
| Packaging content | PDU, 2 Mounting Brackets, 6 M4x5 Bracket Mounting Screws, Cord Retention Tray, 50 Cable Ties, 6 M3x6 Cord Retention Tray Mounting Screws, 6 M5x12 Rack Mounting Screws/Washers, RJ45/DB9 Serial Port Connection Cable, User Manual, Registration Card |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 24.5 kg |
| Package width | 171.4 mm |
| Package depth | 2057.4 mm |
| Package height | 152.4 mm |
