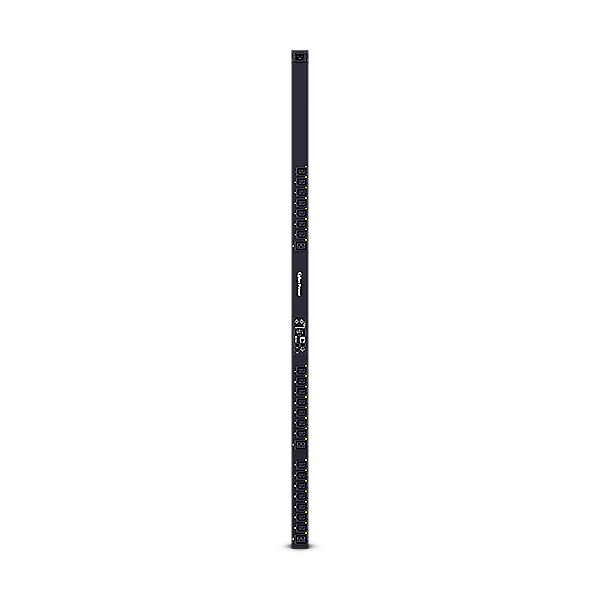

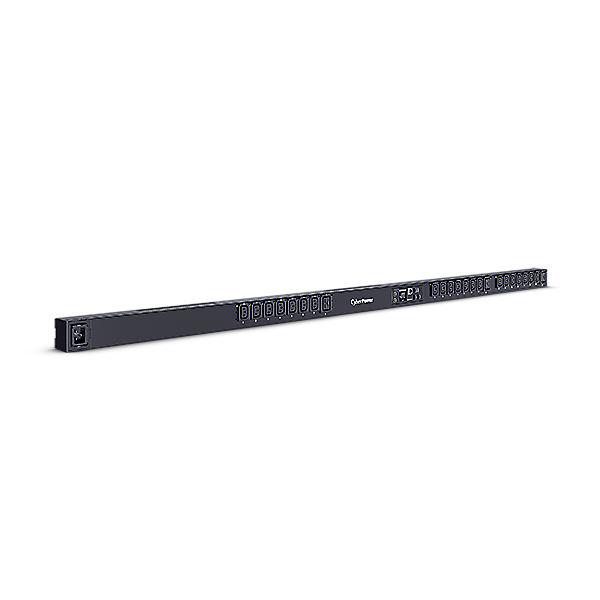

PDU81404 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model PDU81404EAN 4712856277227
41 specifications
- TypeSingle-phase
- Weight7 kg
- ColourBlack
- PDU typesMetered, Monitored, Switched
- AC outlets quantity24 AC outlet(s)
- Daisy chainYes
Overview
- Type
- Single-phase
- Weight
- 7 kg
- Colour
- Black
- PDU types
- Metered, Monitored, Switched
- AC outlets quantity
- 24 AC outlet(s)
- Daisy chain
- Yes
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU81404
- Part number
- PDU81404
- EAN / UPC
- 4712856277227
- Also known as
- CyberPower PDU81404 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
41 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Monitored, Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Metal |
| Product colour | Black |

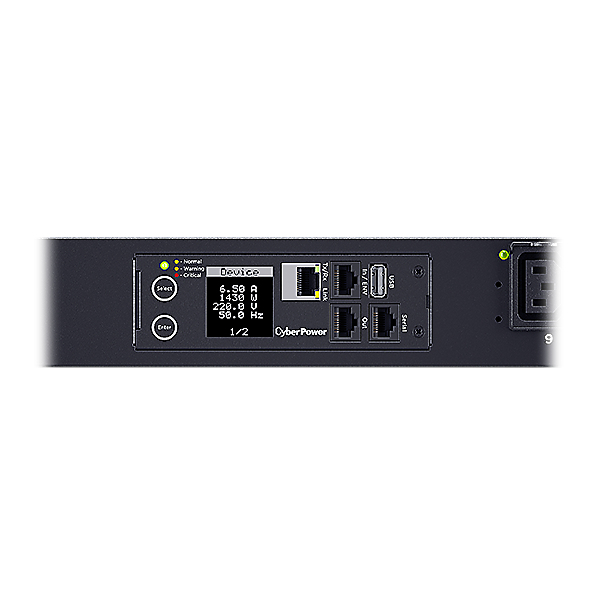

| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| LED indicators | Yes |
| Cable length | 3.05 m |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Firmware upgradeable via | USB |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | CE, EN 55032 Class A |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 48 mm |
| Height | 1665 mm |
| Weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.9 kg |
| Package width | 185 mm |
| Package depth | 115 mm |
| Package height | 1895 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
