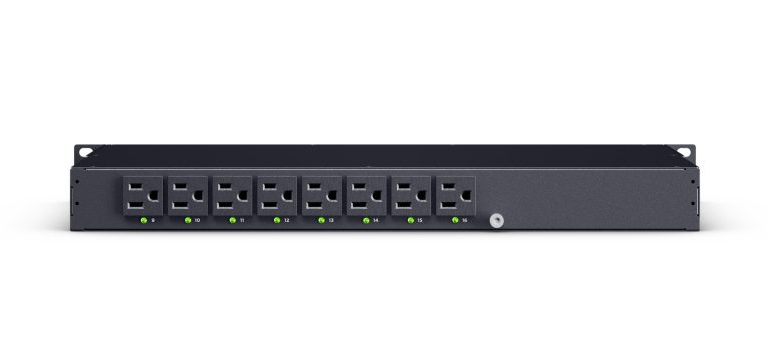

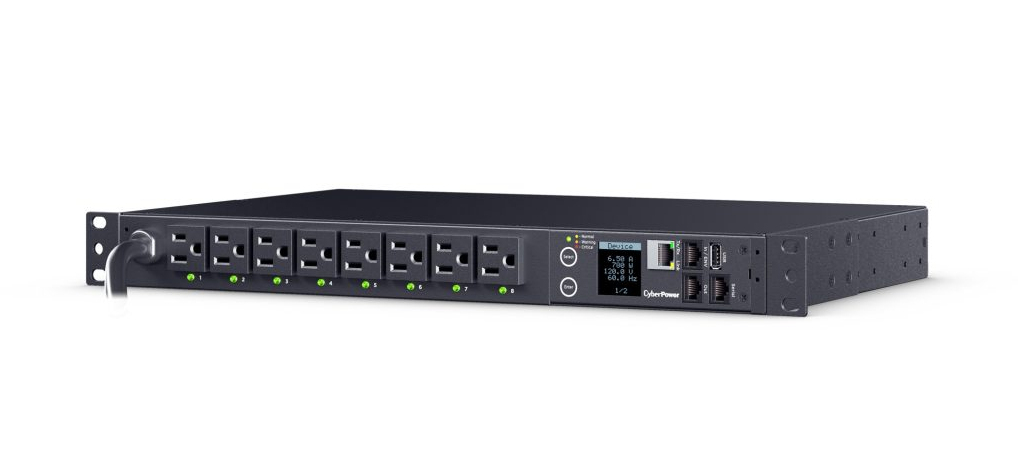

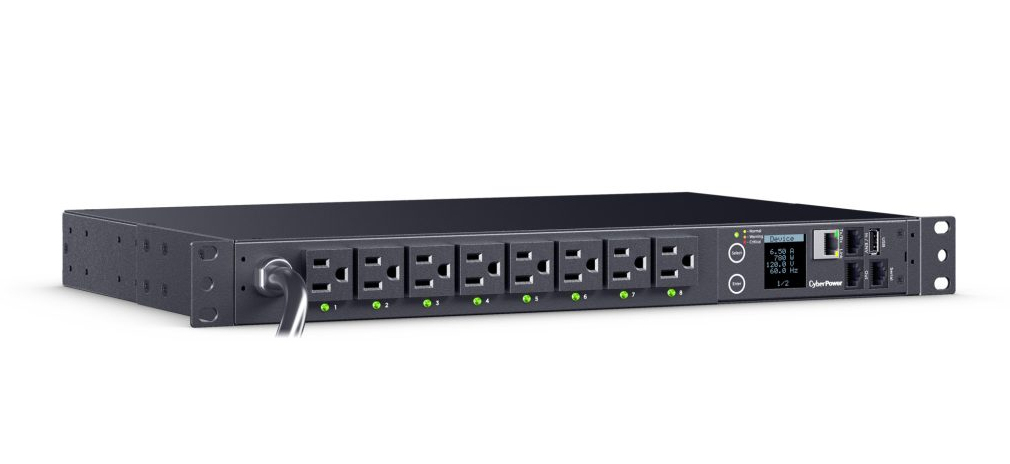

PDU41021 power distribution unit (PDU) 16 AC outlet(s) 1U Black
Model PDU41021EAN 649532937653
37 specifications
- TypeSingle-phase
- Weight3.81 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity16 AC outlet(s)
- Daisy chainYes
Overview
- Type
- Single-phase
- Weight
- 3.81 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 16 AC outlet(s)
- Daisy chain
- Yes
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU41021
- Part number
- PDU41021
- EAN / UPC
- 649532937653
- Also known as
- CyberPower PDU41021 power distribution unit (PDU) 16 AC outlet(s) 1U Black
Specifications
37 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Metal |
| Product colour | Black |
| Display | LCD |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

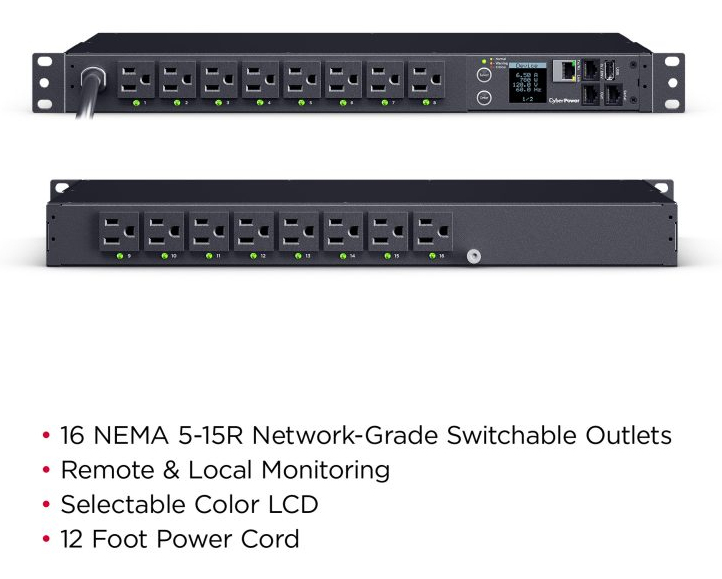

| AC outlets quantity | 16 AC outlet(s) |
| Power plug | NEMA 5-15P |
| AC outlet types | NEMA 5-15R |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| Cable length | 3.7 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Energy, Temperature, Humidity, Voltage, Alarm |
| Management platform | SNMP |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog, RADIUS, LDAP, LDAPS, Windows AD |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 15 A |
| Nominal output voltage | 100-120 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | UL, Federal Communications Commission (FCC), RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0 - 14999 m |
| Operating temperature (T-T) | 32 - 140 °F |

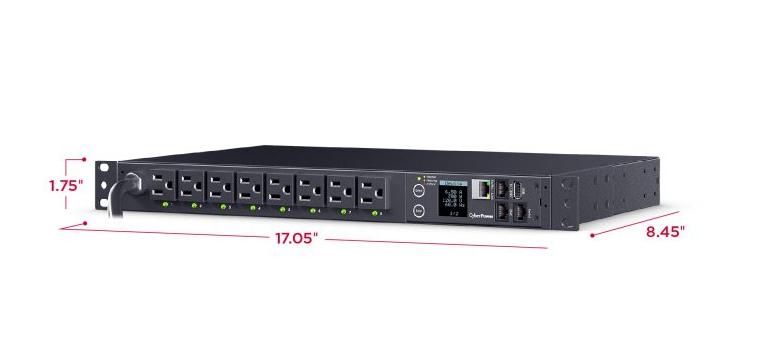

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 215 mm |
| Height | 44 mm |
| Weight | 3.81 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.53 kg |
| Package width | 552.5 mm |
| Package depth | 406.4 mm |
| Package height | 127 mm |
