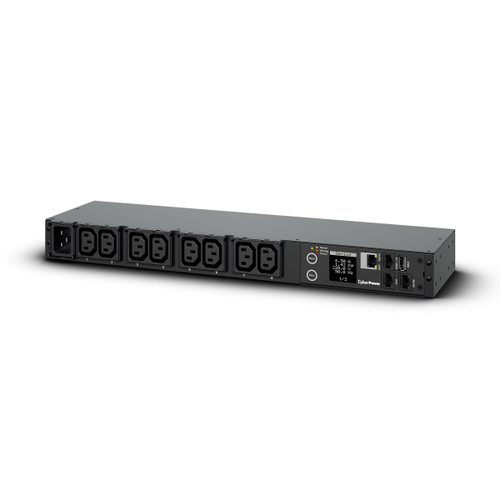

CyberPower PDU41004 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Model PDU41004EAN 649532614103
44 specifications
- TypeSingle-phase
- Weight2.1 kg
- ColourBlack
- PDU typesManaged, Switched
- AC outlets quantity8 AC outlet(s)
- Daisy chainYes
Overview
- Type
- Single-phase
- Weight
- 2.1 kg
- Colour
- Black
- PDU types
- Managed, Switched
- AC outlets quantity
- 8 AC outlet(s)
- Daisy chain
- Yes
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU41004
- Part number
- PDU41004
- EAN / UPC
- 649532614103, 4712856276701, 4712856277180
- Also known as
- CyberPower PDU41004 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Specifications
44 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Managed, Switched |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| LED indicators | Link, Status |
| Cable length | 3.05 m |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Firmware upgradeable via | USB |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 12 A |
| Nominal output voltage | 100 - 240 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC Class A, UL60950, UL62368, EN 55032 Class A |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 32 - 140 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 112 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | PowerPanel Business, PowerPanel Enterprise |
| Packaging content | PDU41004, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.9 kg |
| Package width | 500 mm |
| Package depth | 250 mm |
| Package height | 65 mm |
