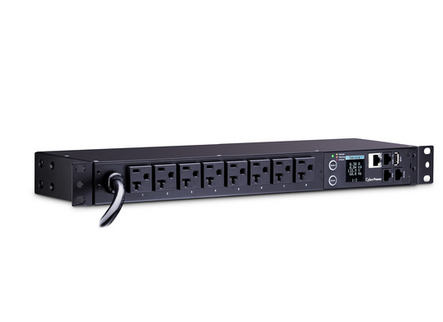

PDU31406 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Model PDU31406
31 specifications
- TypeSingle-phase
- Weight2.72 kg
- ColourBlack
- PDU typesManaged, Monitored
- AC outlets quantity8 AC outlet(s)
- LED indicatorsYes
Overview
- Type
- Single-phase
- Weight
- 2.72 kg
- Colour
- Black
- PDU types
- Managed, Monitored
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- Yes
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU31406
- Part number
- PDU31406
- Also known as
- CyberPower PDU31406 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Specifications
31 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Managed, Monitored |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | NEMA 5-20P |
| AC outlet types | NEMA 5–20R |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3.7 m |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Firmware upgradeable via | USB |
| Supported network protocols | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, Windows AD |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 100 - 120 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | UL 60950, FCC Class A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3500 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.72 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.81 kg |
| Package width | 500.3 mm |
| Package depth | 248.9 mm |
| Package height | 66 mm |
