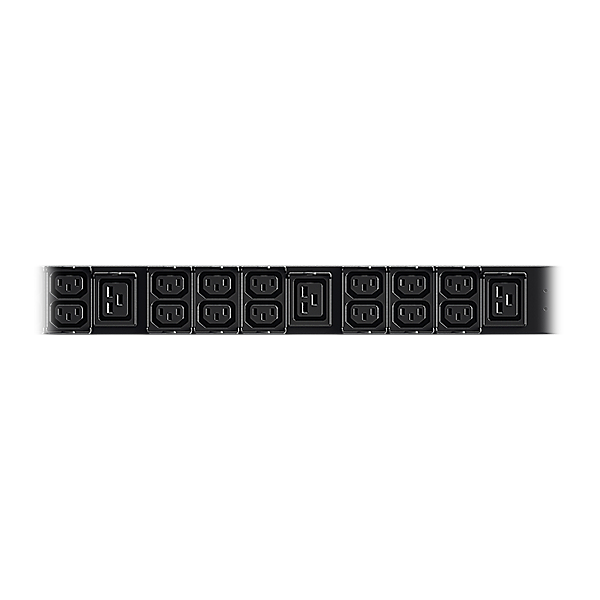

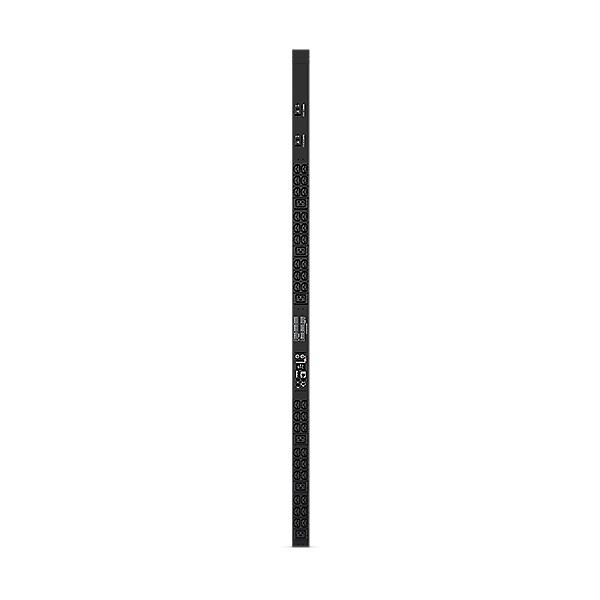

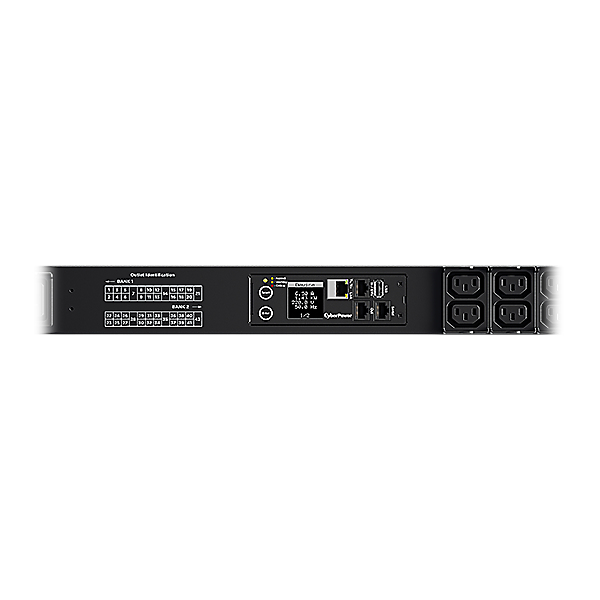

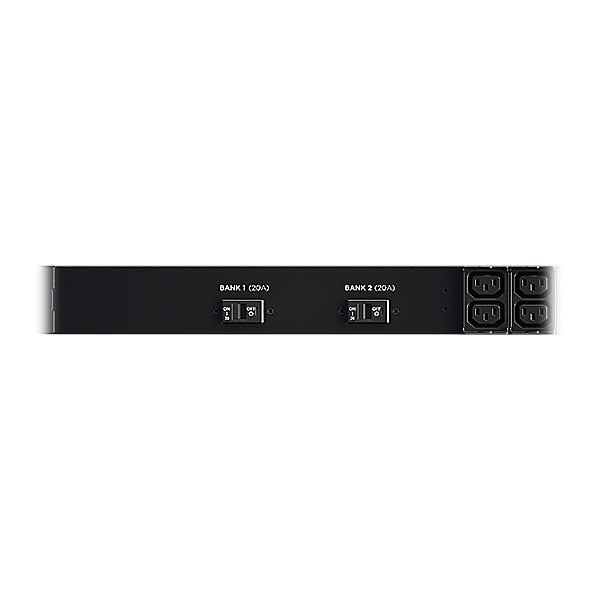

PDU31106 power distribution unit (PDU) 42 AC outlet(s) 0U Black
Model PDU31106EAN 649532620395
29 specifications
- TypeSingle-phase
- Weight5.6 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity42 AC outlet(s)
- Reset buttonYes
Overview
- Type
- Single-phase
- Weight
- 5.6 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 42 AC outlet(s)
- Reset button
- Yes
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU31106
- Part number
- PDU31106
- EAN / UPC
- 649532620395
- Also known as
- CyberPower PDU31106 power distribution unit (PDU) 42 AC outlet(s) 0U Black
Specifications
29 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Steel |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Link, Status |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 24 A |
| Nominal output voltage | 200 - 240 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC Class A, UL60950 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 48 mm |
| Height | 1665 mm |
| Weight | 5.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.5 kg |
| Package width | 185 mm |
| Package depth | 115 mm |
| Package height | 1895 mm |
