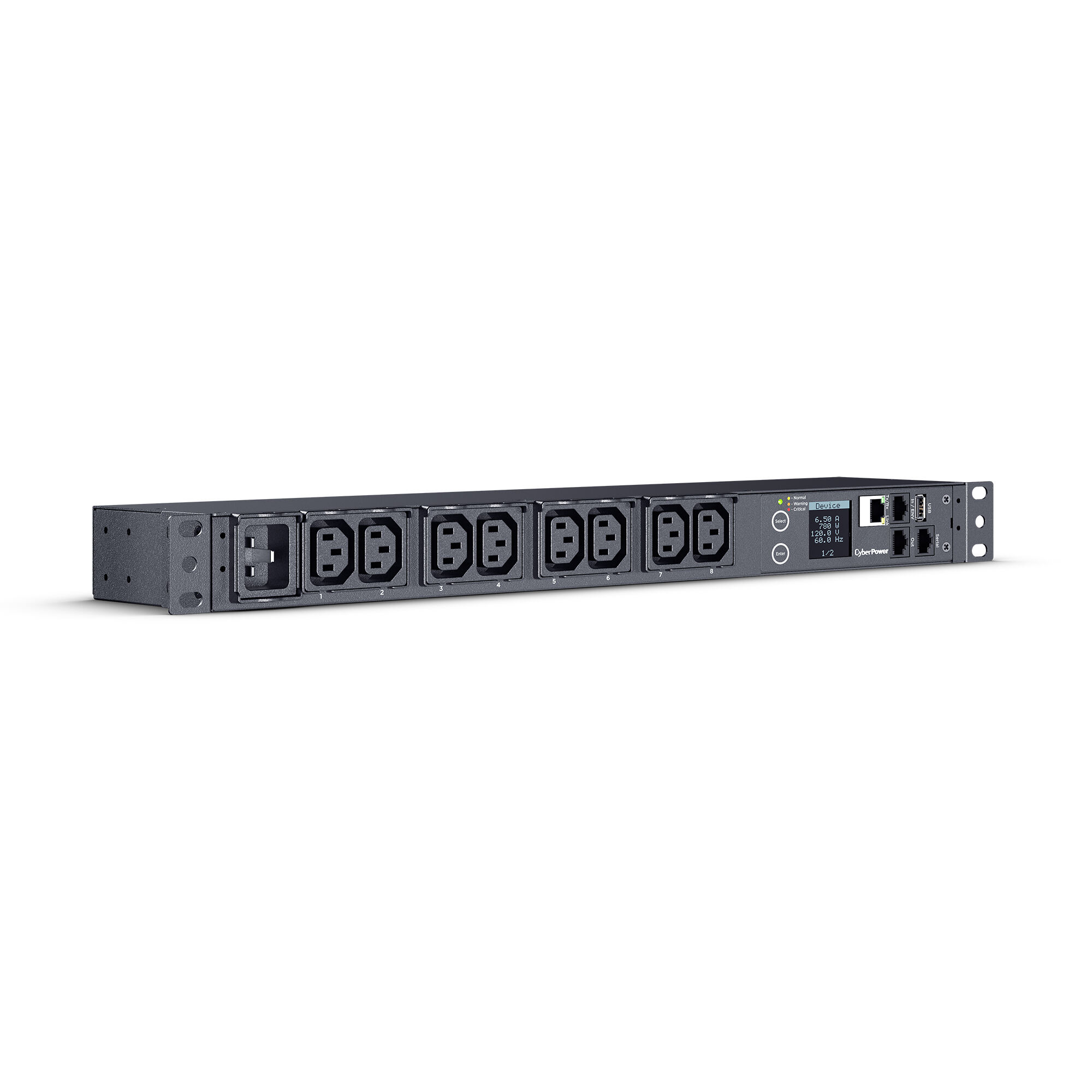

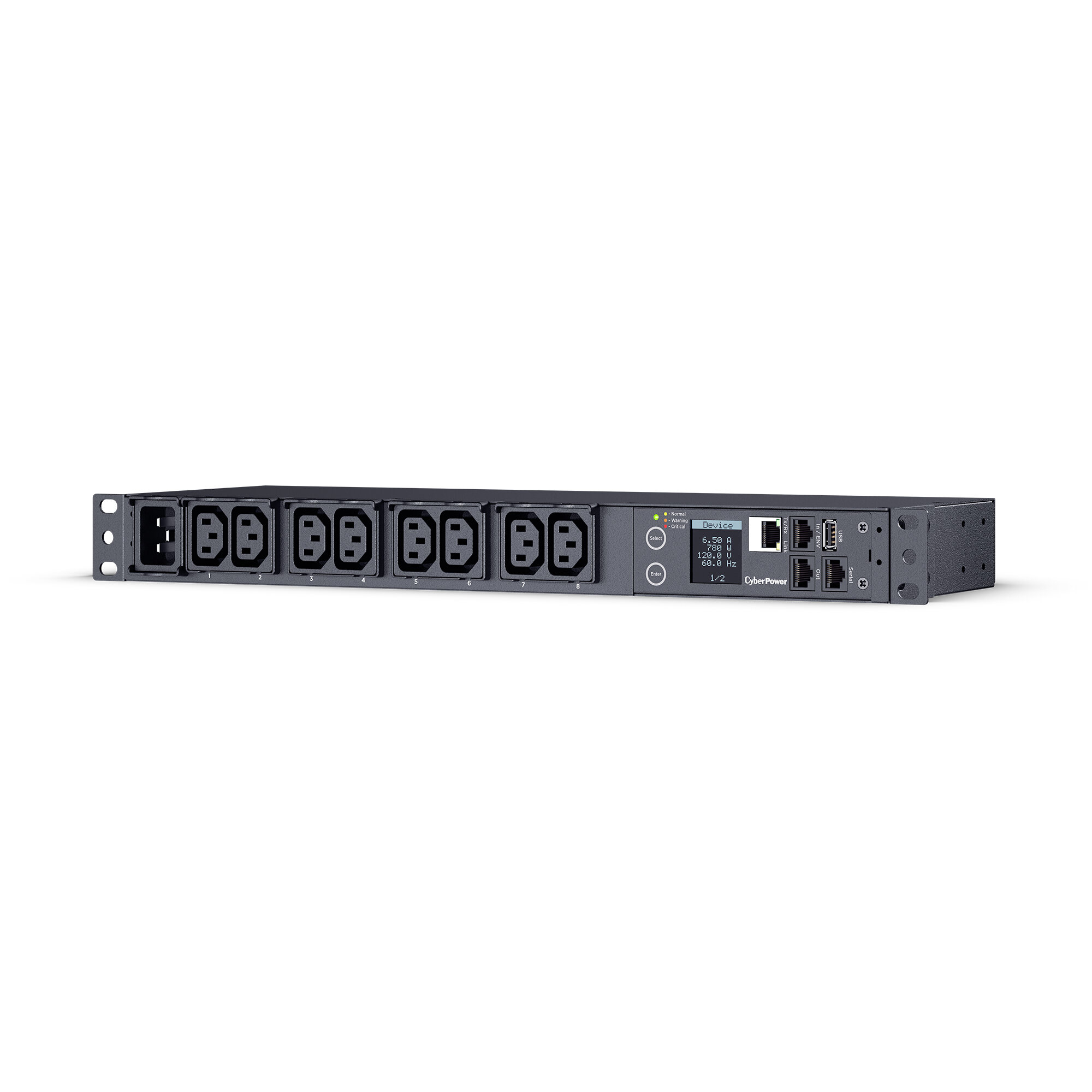

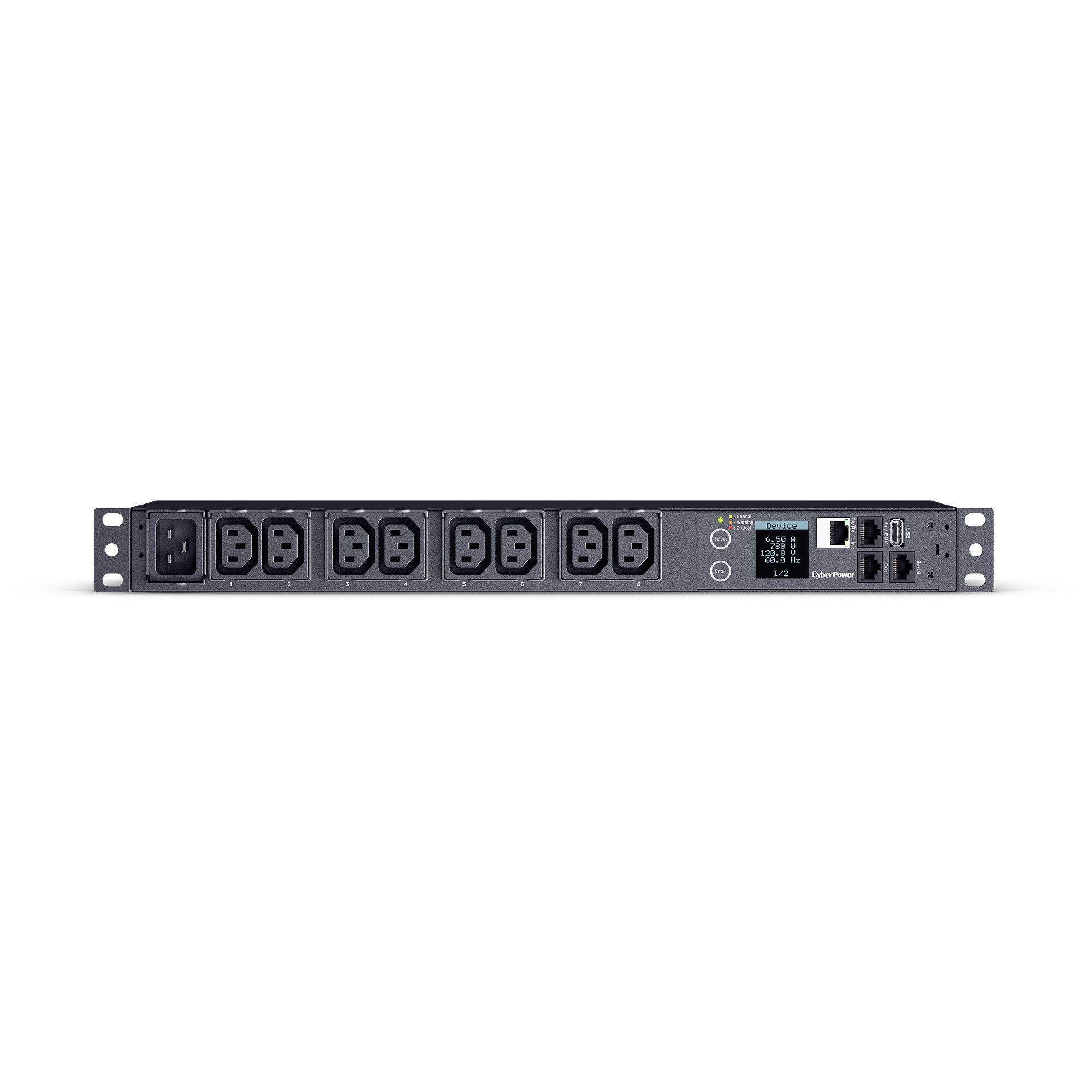

PDU31006 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Model PDU31006EAN 649532614219
35 specifications
- TypeSingle-phase
- Weight2.49 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity8 AC outlet(s)
- LED indicatorsLink, Status
Overview
- Type
- Single-phase
- Weight
- 2.49 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- Link, Status
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU31006
- Part number
- PDU31006
- EAN / UPC
- 649532614219
- Also known as
- CyberPower PDU31006 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Specifications
35 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | IEC 320 |
| AC outlet types | NEMA 6–20P |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| LED indicators | Link, Status |
| Cable length | 4 m |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Management protocols | UDP, Syslog, CLI, Windows AD |
| Supported network protocols | IPv4, IPv6, HTTP, TLS, DNS, TCP/IP, DHCP, FTP, SNMPv1, NTP, Telnet, SMTP, SNMPv3, HTTPs, SSH, SSL, LDAP(S), RADIUS |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3499 m |
| Operating temperature (T-T) | 32 - 131 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 112 mm |
| Depth | 433 mm |
| Height | 44 mm |
| Weight | 2.49 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
| Packaging content | PDU, 4 Mounting Brackets (2 short and 2 long), 12 (Flat Head M4x8) Bracket Mounting Screws, 6 (M5x12) Rack Mounting Screws/Washers, Cord Retention Tray, 27 Cable Ties, 6 (M3x6) Cord Retention Tray Mounting Screws, RJ45/DB9 Serial Port Connection Cable, 10ft Power Cord IEC-320 C19 to NEMA L6-20P, Use |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.31 kg |
| Package width | 249.9 mm |
| Package depth | 499.9 mm |
| Package height | 65 mm |
