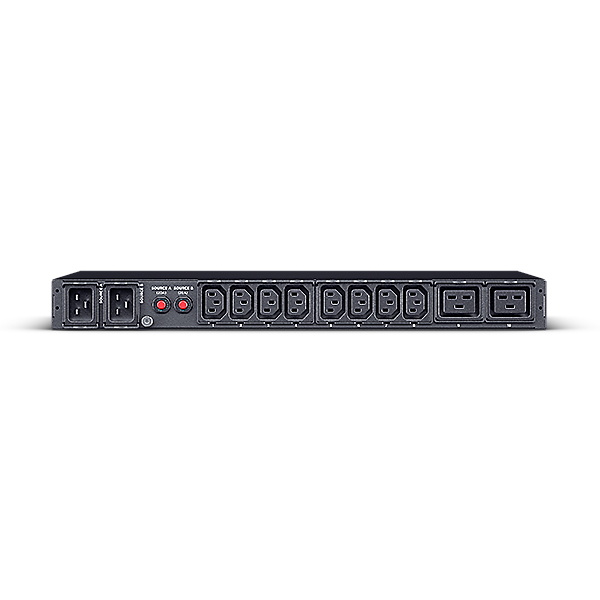

PDU24005 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Model PDU24005EAN 649532933358
42 specifications
- TypeSingle-phase
- Weight3.2 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity10 AC outlet(s)
- LED indicatorsLink, Status
Overview
- Type
- Single-phase
- Weight
- 3.2 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 10 AC outlet(s)
- LED indicators
- Link, Status
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU24005
- Part number
- PDU24005
- EAN / UPC
- 649532933358, 4711027799797
- Also known as
- CyberPower PDU24005 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Specifications
42 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Link, Status |
| Cable length | 3.05 m |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 12 A |
| Nominal output voltage | 200 - 240 V |
| Power protection features | Overload |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS, UL |
| Certification | FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 95 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4000 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 32 - 113 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 215 mm |
| Height | 44 mm |
| Weight | 3.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | PDU24005, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6 kg |
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 125 mm |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
