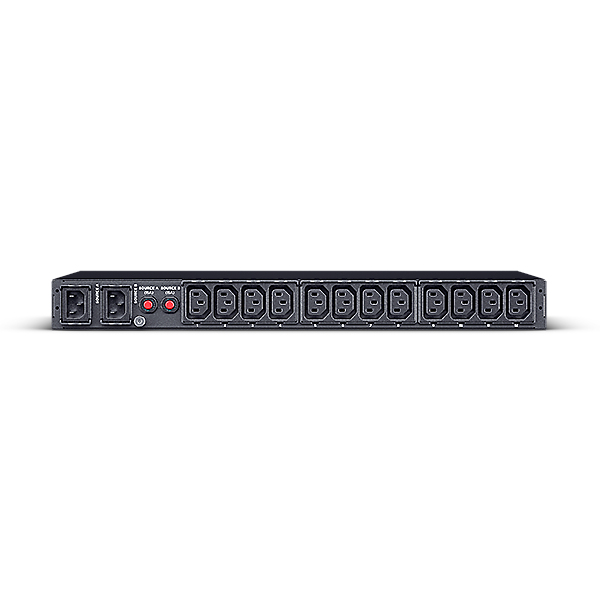

PDU24004 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Model PDU24004EAN 649532933334
38 specifications
- TypeSingle-phase
- Weight3.5 kg
- ColourBlack
- PDU typesManaged, Switched
- AC outlets quantity12 AC outlet(s)
- Daisy chainYes
Overview
- Type
- Single-phase
- Weight
- 3.5 kg
- Colour
- Black
- PDU types
- Managed, Switched
- AC outlets quantity
- 12 AC outlet(s)
- Daisy chain
- Yes
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU24004
- Part number
- PDU24004
- EAN / UPC
- 649532933334, 4711027799810
- Also known as
- CyberPower PDU24004 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Specifications
38 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Managed, Switched |
| Type | Single-phase |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | IEC 60320 |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| LED indicators | Yes |
| Cable length | 3.05 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 12 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 15000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 215 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.7 kg |
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 125 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
