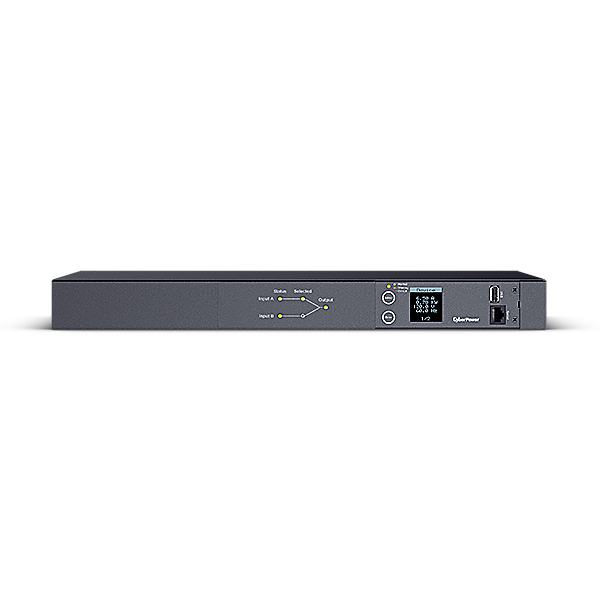

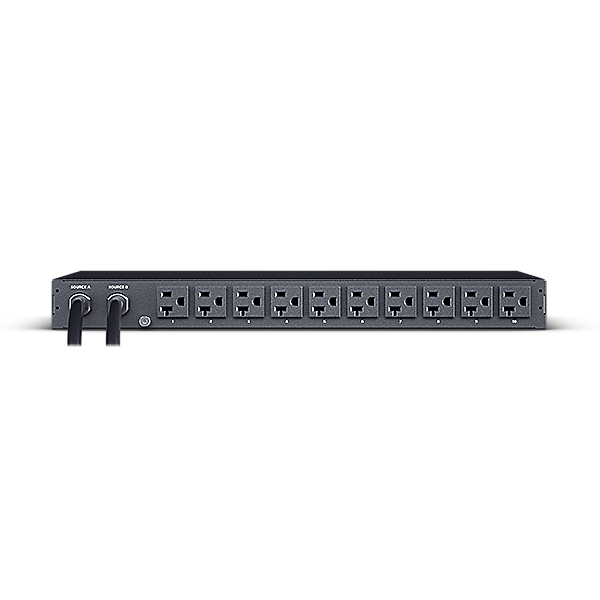

PDU24002 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Model PDU24002EAN 649532933907
27 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesMetered
- AC outlets quantity10 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage100 - 120 V
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 10 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 100 - 120 V
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU24002
- Part number
- PDU24002
- EAN / UPC
- 649532933907
- Also known as
- CyberPower PDU24002 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Specifications
27 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | NEMA 5–20R |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4000 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 0 - 45 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 215 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 125 mm |
