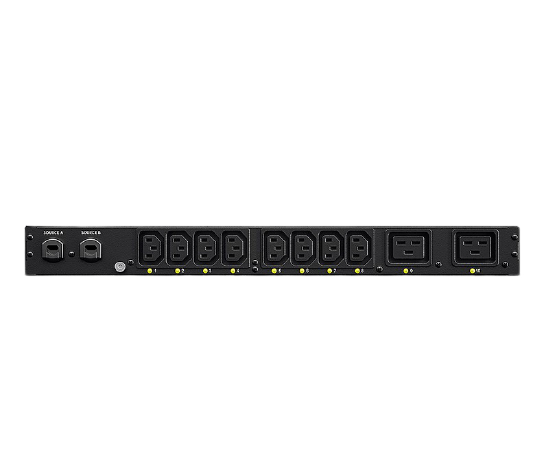

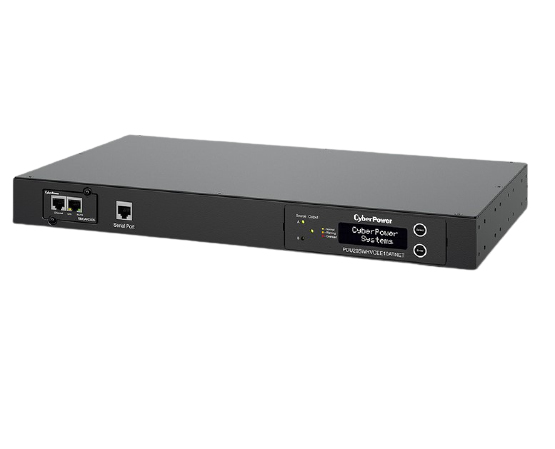

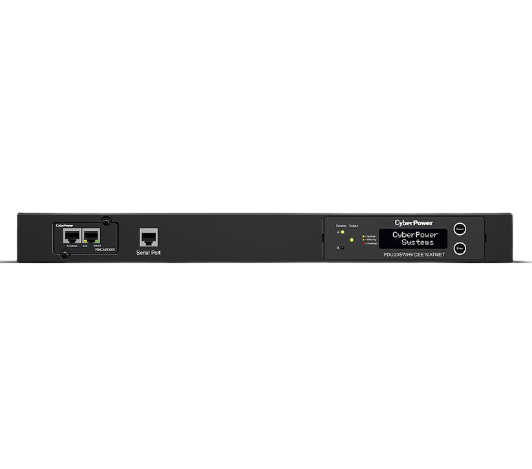

PDU20SWHVCEE10ATNET power distribution unit (PDU) 16 AC outlet(s) 1U Black
Model PDU20SWHVCEE10ATNETEAN 4712364146077
20 specifications
- ColourBlack
- PDU typesBasic
- AC outlets quantity16 AC outlet(s)
- Cable length4.57 m
- Nominal input voltage120 V
- Operating temperature (T-T)0 - 35 °C
Overview
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 16 AC outlet(s)
- Cable length
- 4.57 m
- Nominal input voltage
- 120 V
- Operating temperature (T-T)
- 0 - 35 °C
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU20SWHVCEE10ATNET
- Part number
- PDU20SWHVCEE10ATNET
- EAN / UPC
- 4712364146077
- Also known as
- CyberPower PDU20SWHVCEE10ATNET power distribution unit (PDU) 16 AC outlet(s) 1U Black
Specifications
20 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | NEMA 5-20P |
| AC outlet types | NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 4.57 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 120 V |
| Power protection features | Overload |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | UL1363 ETL, CSA C22.2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
