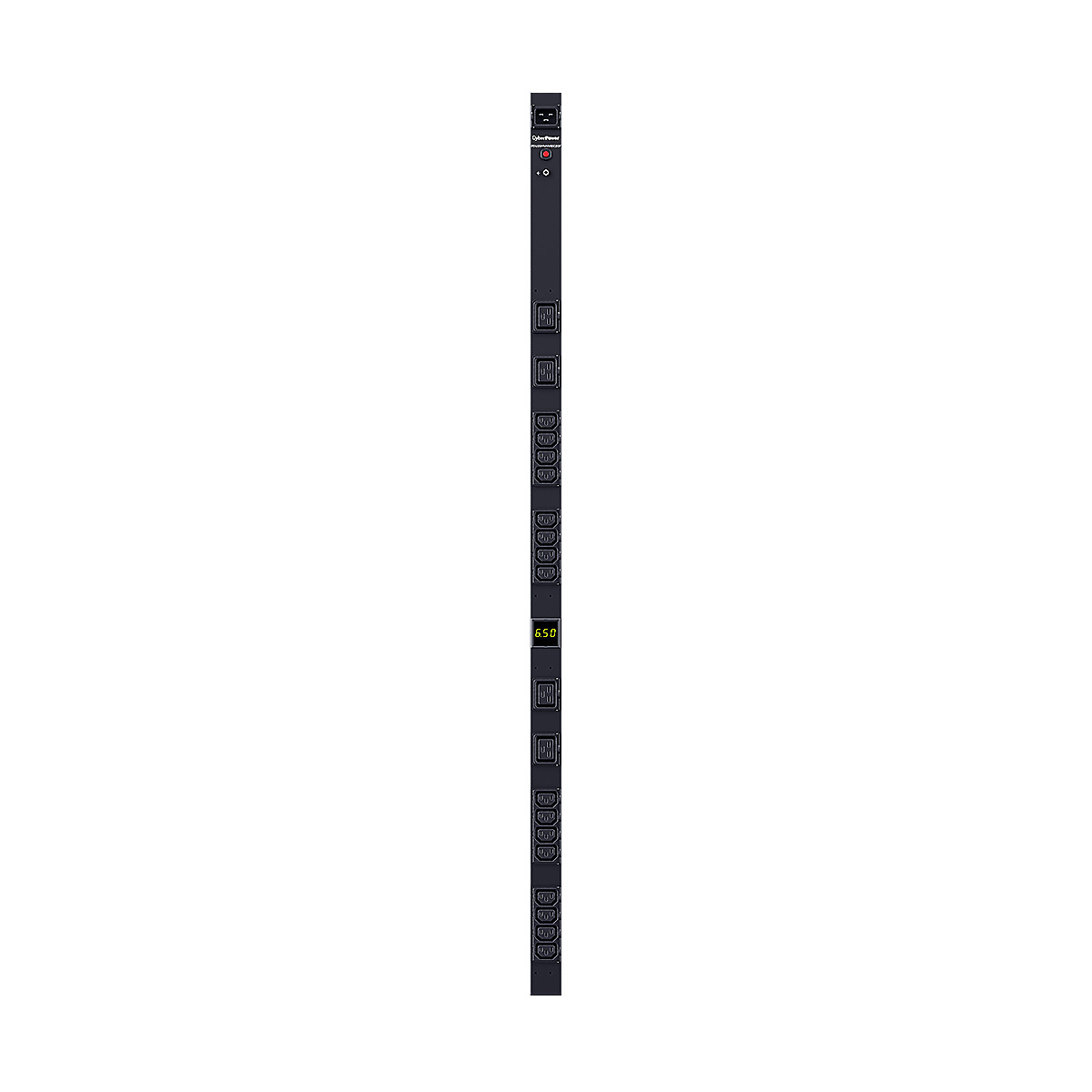

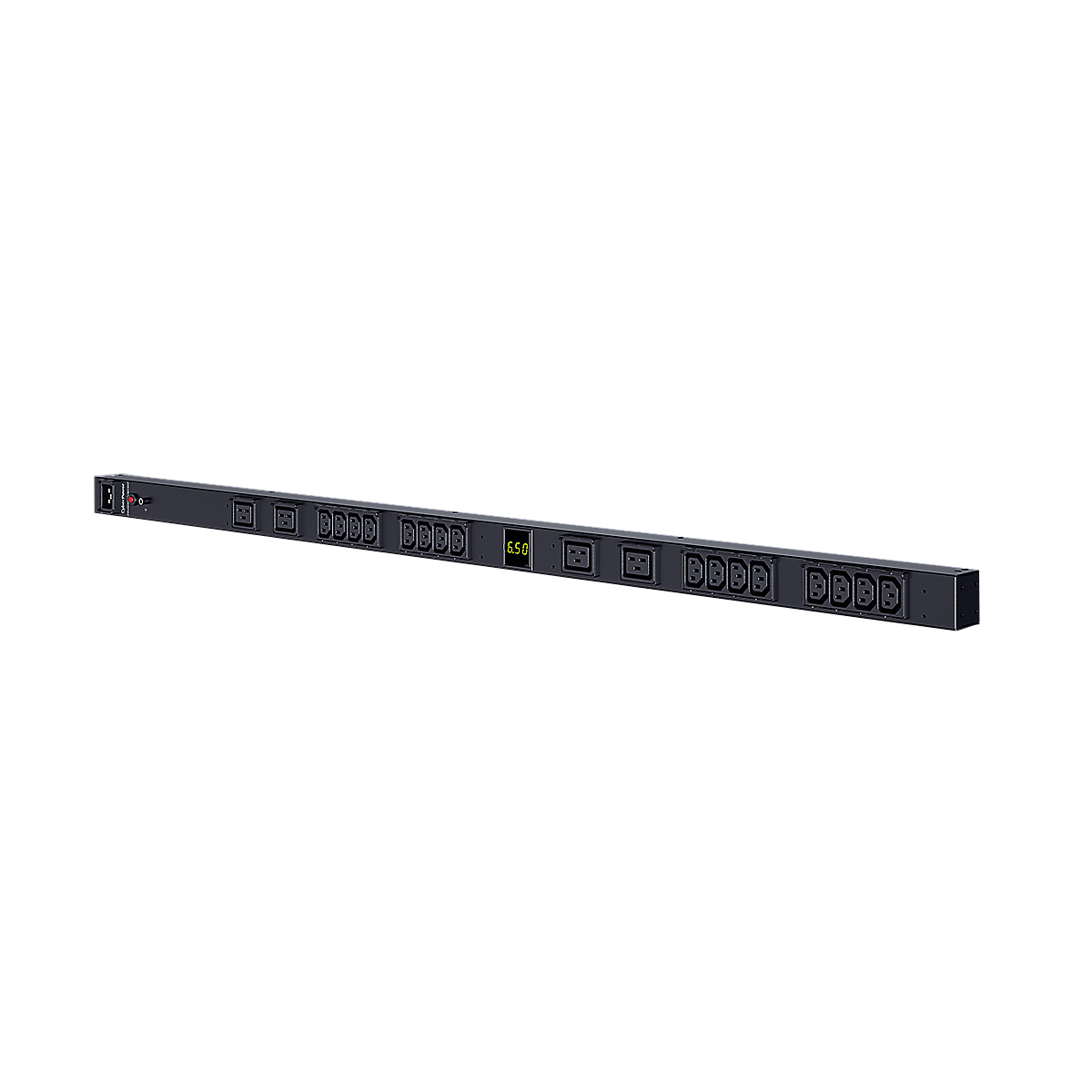

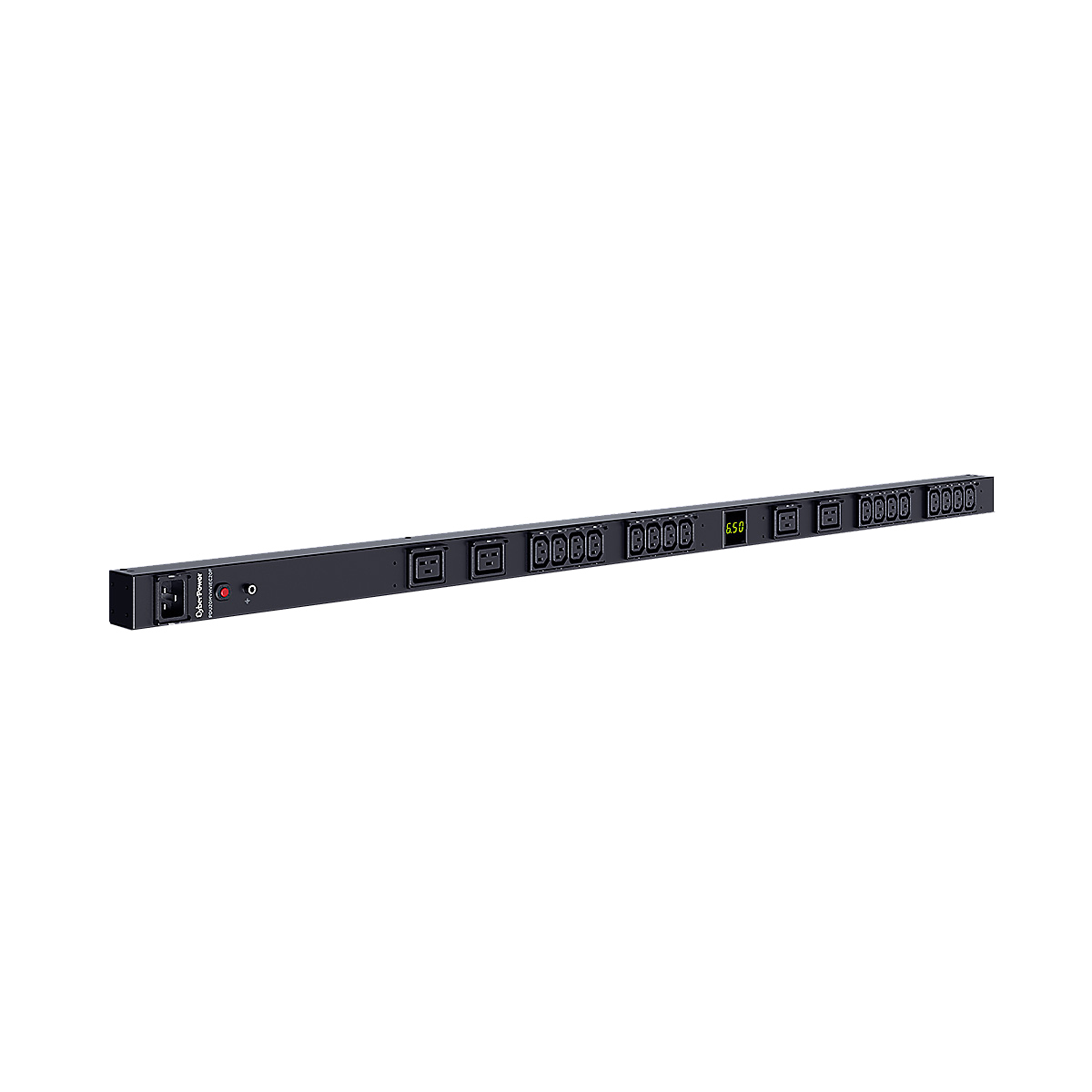

PDU20MVHVIEC20F power distribution unit (PDU) 20 AC outlet(s) 0U Black
Model PDU20MVHVIEC20F
25 specifications
- TypeSingle-phase
- Weight3.2 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity20 AC outlet(s)
- Cable length3.05 m
Overview
- Type
- Single-phase
- Weight
- 3.2 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 20 AC outlet(s)
- Cable length
- 3.05 m
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- PDU20MVHVIEC20F
- Part number
- PDU20MVHVIEC20F
- Also known as
- CyberPower PDU20MVHVIEC20F power distribution unit (PDU) 20 AC outlet(s) 0U Black
Specifications
25 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Steel |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 20 AC outlet(s) |
| Power plug | IEC 320 |
| AC outlet types | C13 coupler, C19 coupler, C20 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Power protection features | Overload |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44.5 mm |
| Depth | 38.1 mm |
| Height | 1219 mm |
| Weight | 3.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 80 mm |
| Package height | 1330 mm |
