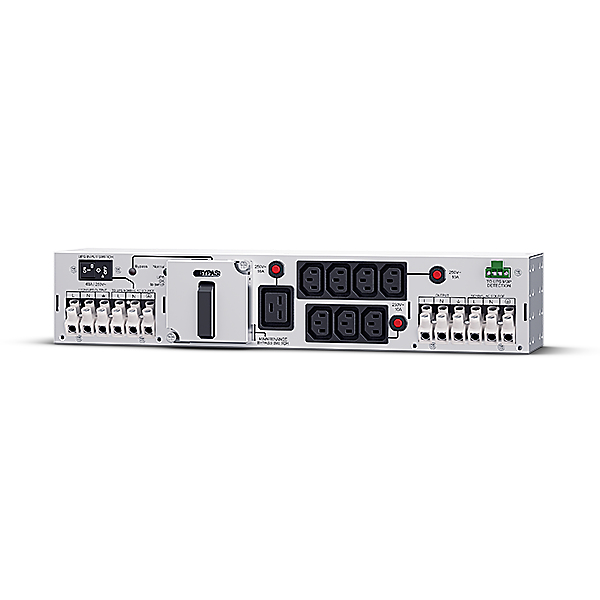

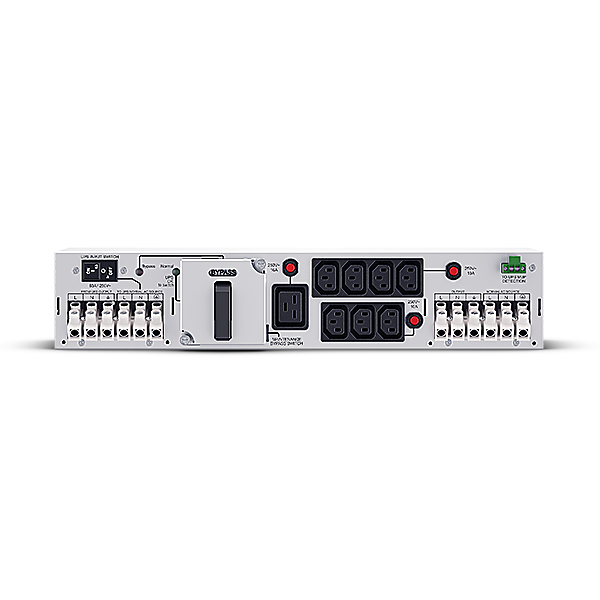

MBP63AHVHW82U power distribution unit (PDU) 8 AC outlet(s) 2U Black, Silver
Model MBP63AHVHW82UEAN 4712856274769
27 specifications
- Weight4 kg
- ColourBlack, Silver
- Rack capacity2U
- AC outlets quantity8 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage200 - 240 V
Overview
- Weight
- 4 kg
- Colour
- Black, Silver
- Rack capacity
- 2U
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 200 - 240 V
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- MBP63AHVHW82U
- Part number
- MBP63AHVHW82U
- EAN / UPC
- 4712856274769
- Also known as
- CyberPower MBP63AHVHW82U power distribution unit (PDU) 8 AC outlet(s) 2U Black, Silver
Specifications
27 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Rack capacity | 2U |
| Housing material | Metal |
| Product colour | Black, Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Compatible products | CyberPower OL6KERTHD, OL5KERTHD |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| Maximum current | 63 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, EAC, RCM, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 125 mm |
| Height | 86.5 mm |
| Weight | 4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7 kg |
| Package width | 500 mm |
| Package depth | 70 mm |
| Package height | 250 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
