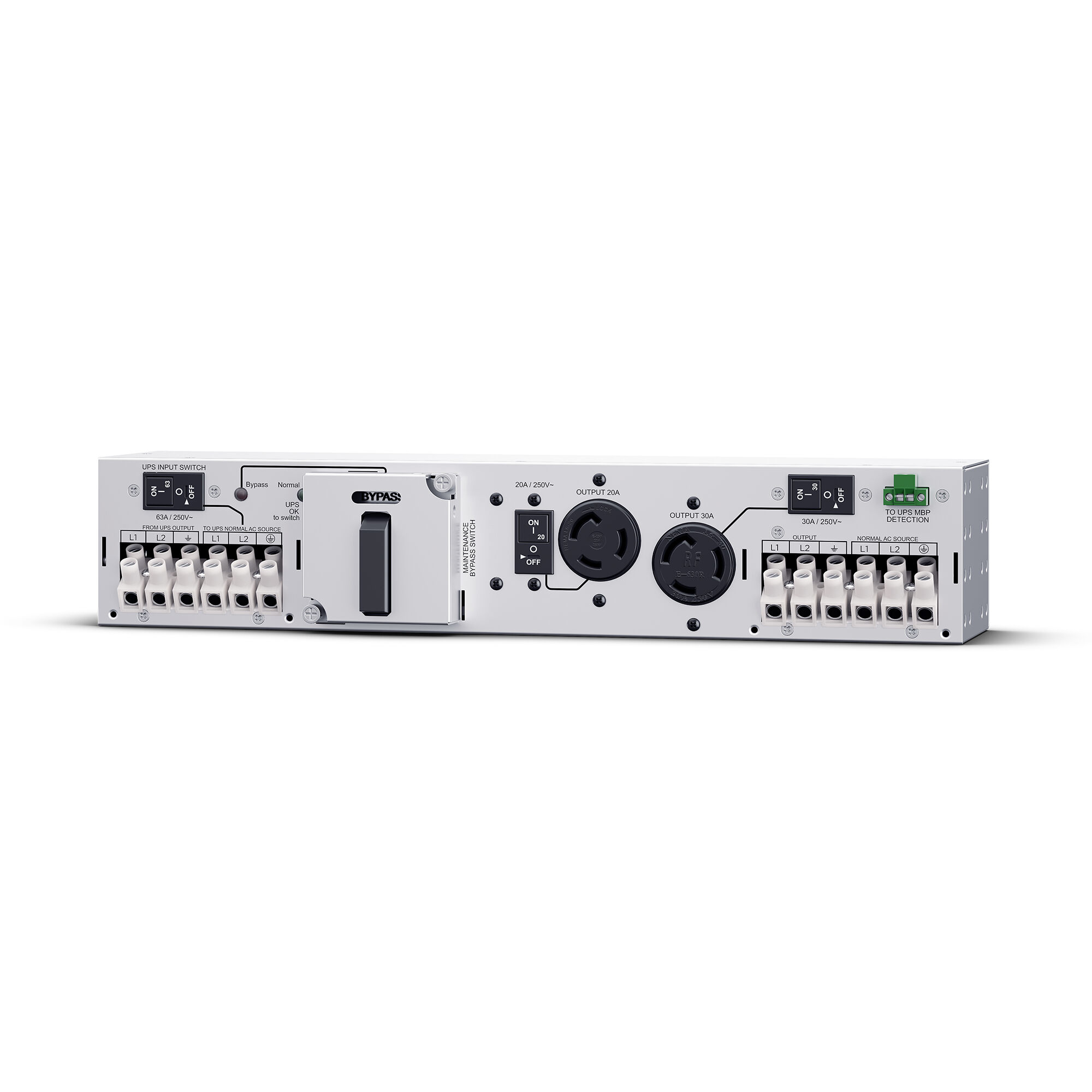

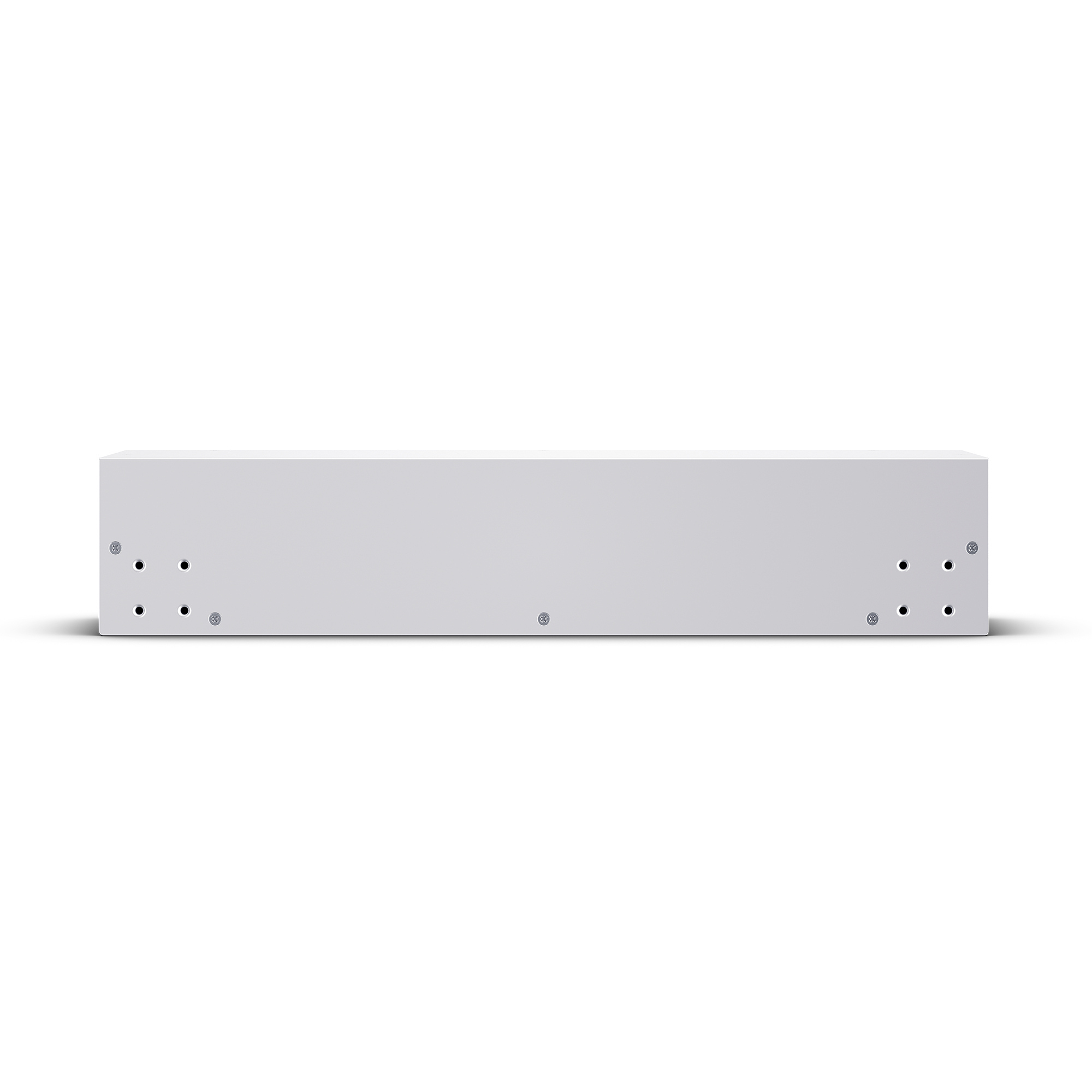

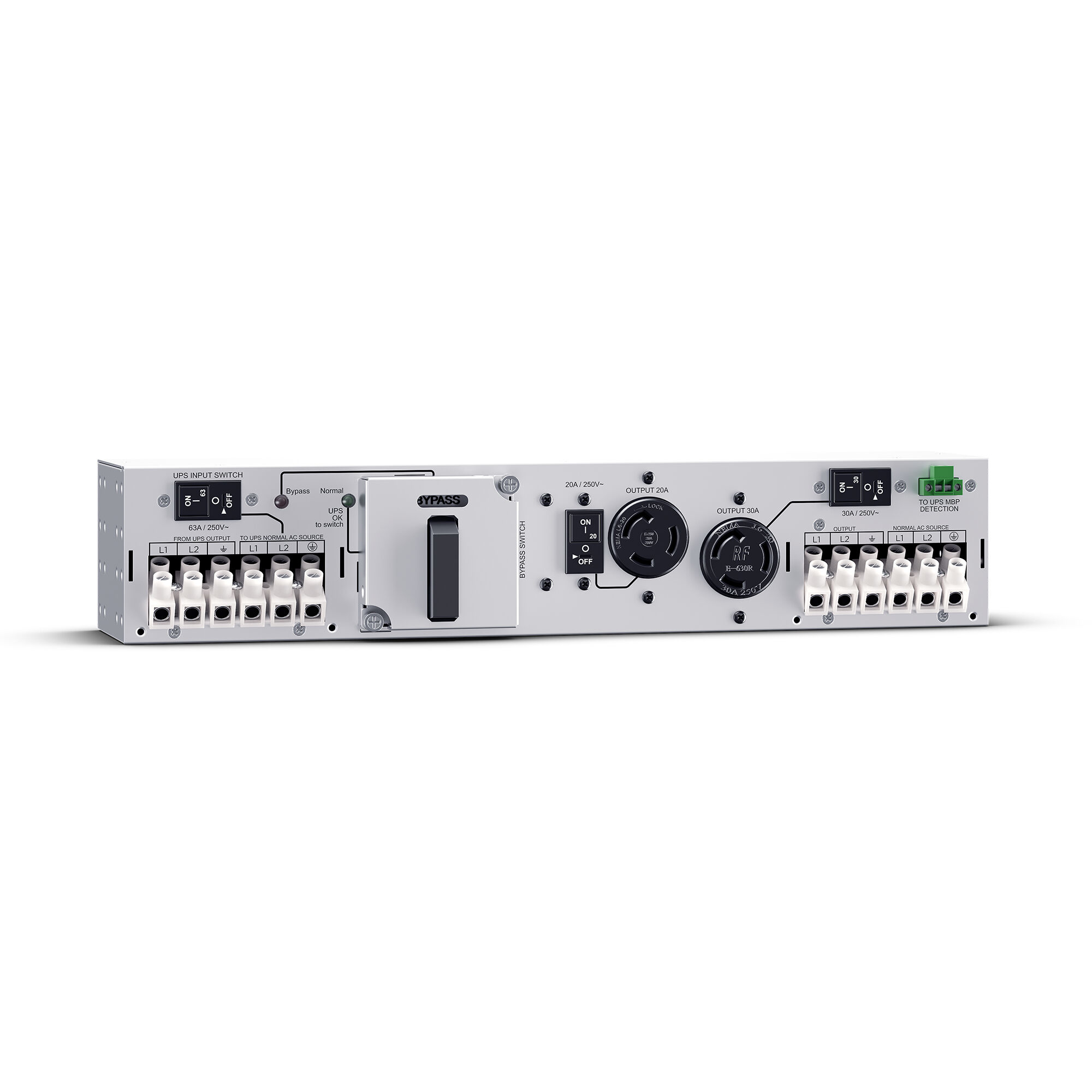

MBP63A2 power distribution unit (PDU) 3 AC outlet(s) 2U
Model MBP63A2EAN 649532931385
15 specifications
- TypeSingle-phase
- Weight4 kg
- PDU typesSwitched
- AC outlets quantity3 AC outlet(s)
- Cable length1 m
- Nominal input voltage220 - 240 V
Overview
- Type
- Single-phase
- Weight
- 4 kg
- PDU types
- Switched
- AC outlets quantity
- 3 AC outlet(s)
- Cable length
- 1 m
- Nominal input voltage
- 220 - 240 V
- Brand
- CyberPower
- Category
- Power Distribution Units (PDUs)
- Model
- MBP63A2
- Part number
- MBP63A2
- EAN / UPC
- 649532931385
- Also known as
- CyberPower MBP63A2 power distribution unit (PDU) 3 AC outlet(s) 2U
Specifications
15 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 2U |
| Housing material | Metal |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | NEMA L6-20R, NEMA L6-30R |
Features
| Specification | Value |
|---|---|
| Cable length | 1 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 220 - 240 V |
| Maximum current | 63 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 125 mm |
| Height | 86.5 mm |
| Weight | 4 kg |
