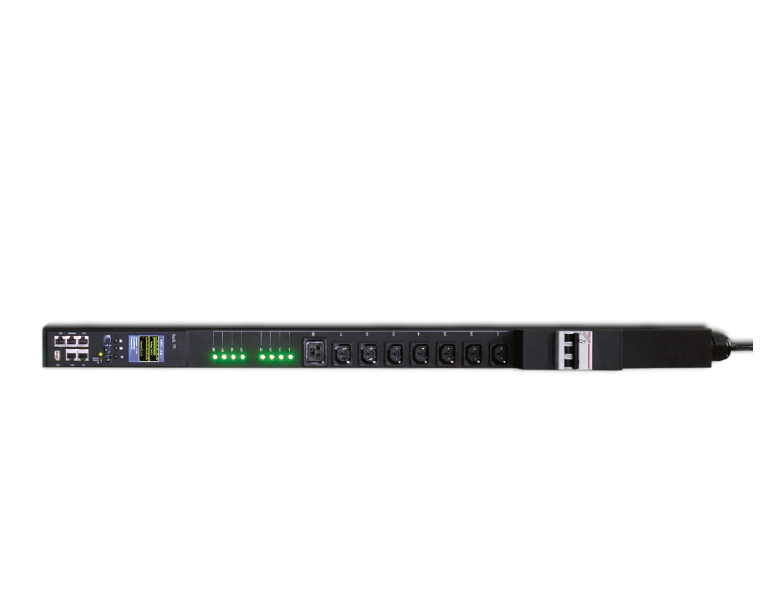

SPDU21-24i Vertical Smart PDU, 220VAC
60HZ, 21*IEC C13(Locked), 3*C19(locked), Surge protector, SNMP control, 2m #14 cable, US plug
Model SPDU21-24iPart no. SPDU21-24IEAN 879071009232
22 specifications
- Weight4.8 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity24 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage220 V
Overview
- Weight
- 4.8 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 24 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 220 V
- Brand
- CDP
- Category
- Power Distribution Units (PDUs)
- Model
- SPDU21-24i
- Part number
- SPDU21-24I
- EAN / UPC
- 879071009232
- Also known as
- CDP SPDU21-24i Vertical Smart PDU, 220VAC 60HZ, 21*IEC C13(Locked), 3*C19(locked), Surge protector, SNMP control, 2m #14 cable, US plug
Specifications
22 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 2 m |
Management features
| Specification | Value |
|---|---|
| Supported network protocols | TCP, UDP, HTTP, SMTP, SNMP, NTP, DHCP, RADIUS, TELNET |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 220 V |
| AC input frequency | 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 1538 mm |
| Height | 67 mm |
| Weight | 4.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 110 mm |
| Master (outer) case length | 1630 mm |
| Master (outer) case height | 69 mm |
