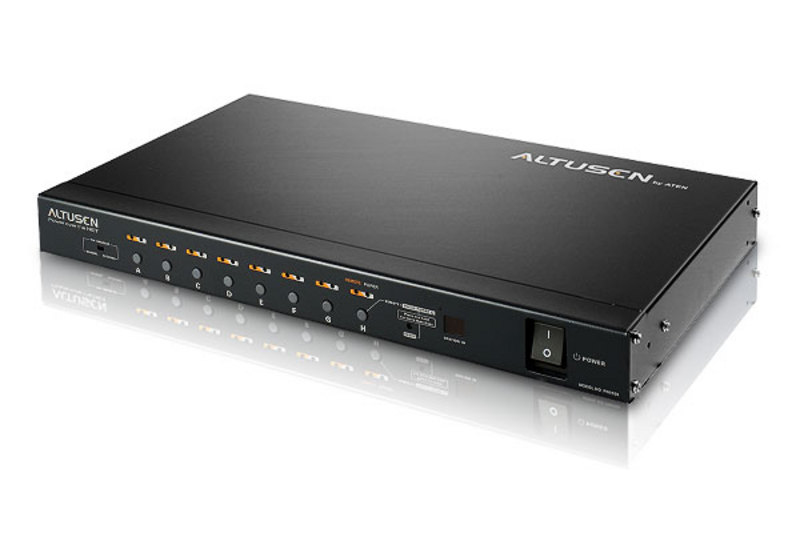

PN0108 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Model PN0108Part no. DCP2940EAN 4710423773394
21 specifications
- Weight3.7 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity8 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage100-240 V
Overview
- Weight
- 3.7 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 100-240 V
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PN0108
- Part number
- DCP2940
- EAN / UPC
- 4710423773394, 6727924501294
- Also known as
- ATEN PN0108 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Specifications
21 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Housing material | Metal |
| Product colour | Black |

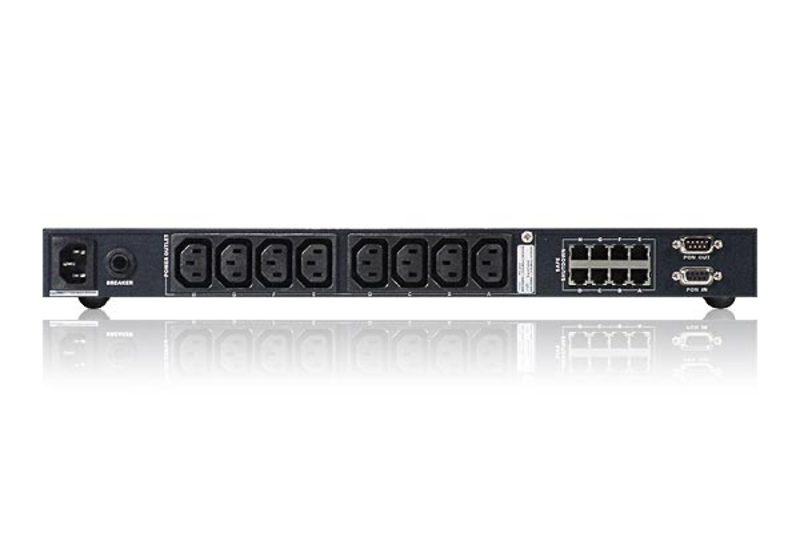

Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial ports quantity | 2 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 12 A |
| Nominal output voltage | 100-240 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432.4 mm |
| Depth | 209.8 mm |
| Height | 44 mm |
| Weight | 3.7 kg |
