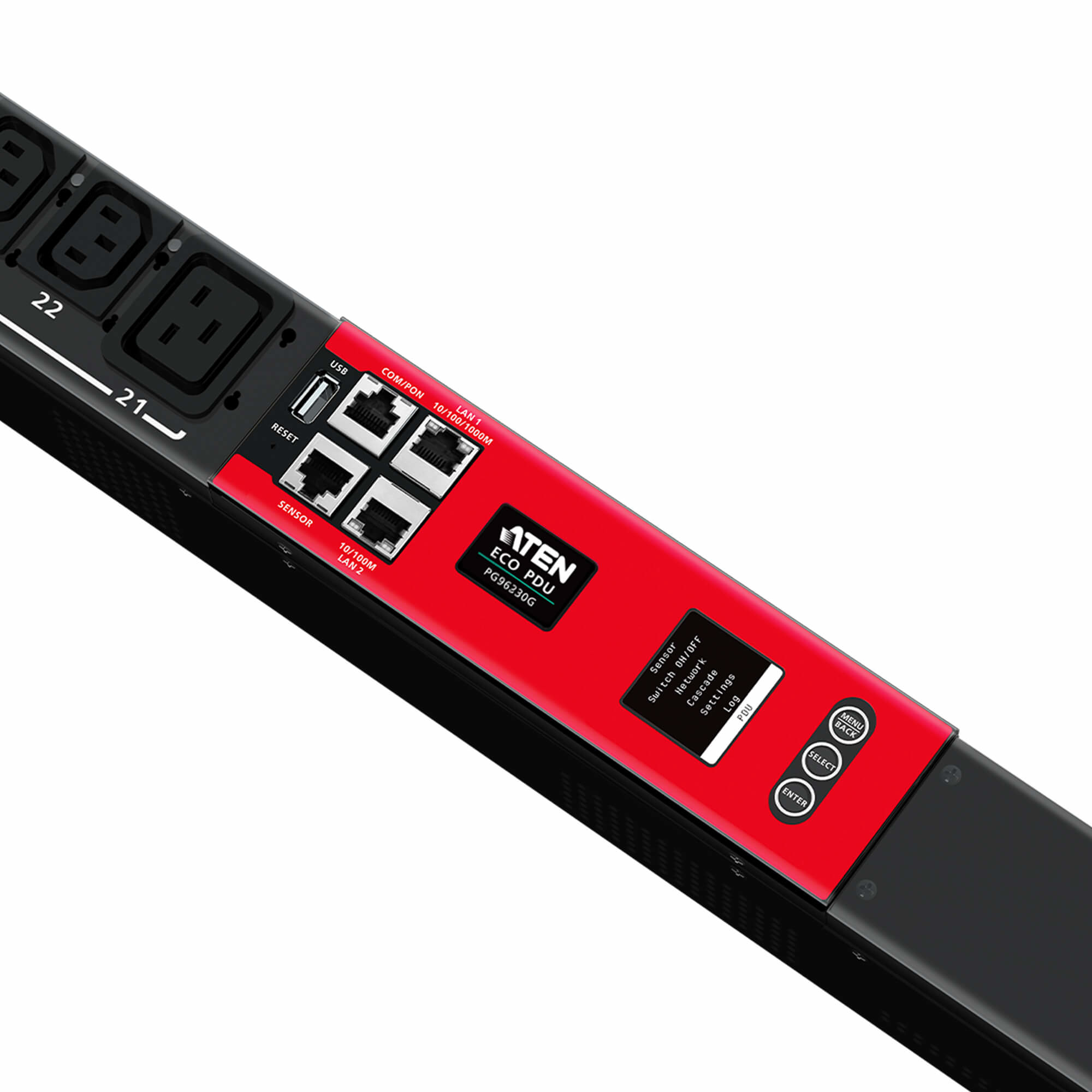

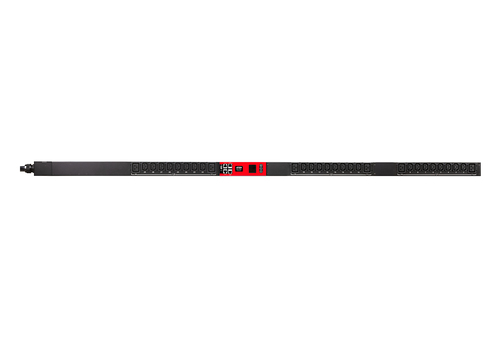

16A 30-Outlet 3Phase Metered & Switched PDU + Free Eco PDU Manager Software
Model PG96230GPart no. PG96230G-ATEAN 4710469342899
45 specifications
- TypeThree-phase
- Weight7.36 kg
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity30 AC outlet(s)
- Daisy chainYes
Overview
- Type
- Three-phase
- Weight
- 7.36 kg
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 30 AC outlet(s)
- Daisy chain
- Yes
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PG96230G
- Part number
- PG96230G-AT
- EAN / UPC
- 4710469342899
- Also known as
- ATEN 16A 30-Outlet 3Phase Metered & Switched PDU + Free Eco PDU Manager Software
Specifications
45 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Management protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1&V2&V3, Telnet, Modbus |
| Supported network protocols | IPv6, SMS |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Load capacity | 11084 VA |
| Number of phases | 3 |
| Circuit breaker | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 1790 mm |
| Height | 68 mm |
| Weight | 7.36 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.1 kg |
| Package width | 229 mm |
| Package depth | 1945 mm |
| Package height | 179 mm |
| Package volume | 79853.5074 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 7.51 kg |
| Master (outer) case width | 229 mm |
| Master (outer) case length | 1945 mm |
| Master (outer) case height | 179 mm |
| Master (outer) case gross weight | 10.2 kg |
| Master (outer) case volume | 79853.5074 cm³ |
