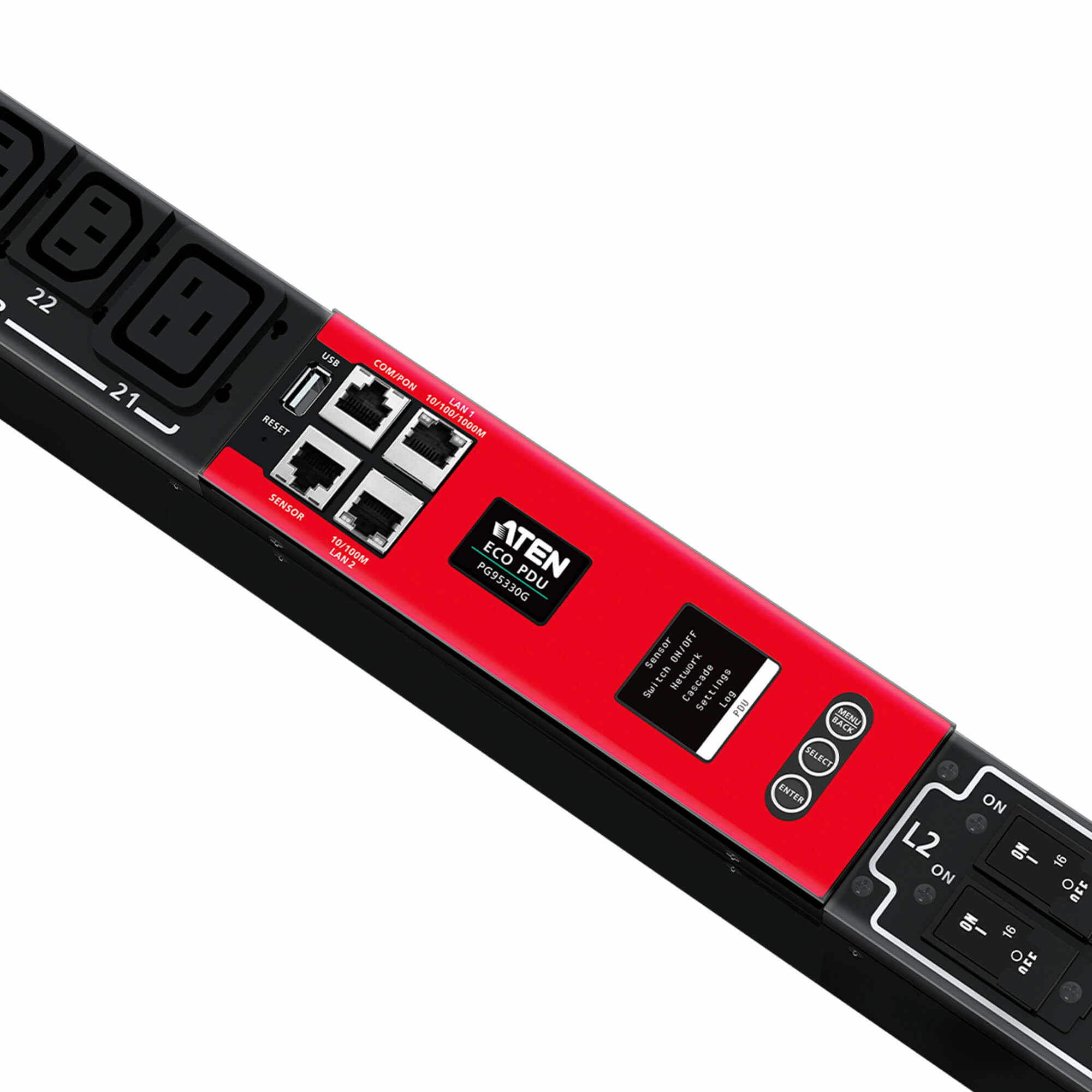

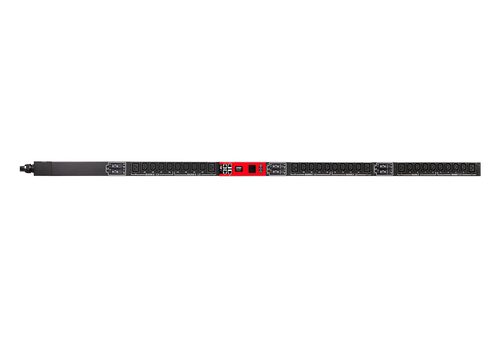

ATEN 32A 30-Outlet 3Phase Metered PDU + Free Eco PDU Manager Software

32A 30-Outlet 3Phase Metered PDU + Free Eco PDU Manager Software

Model PG95330GPart no. PG95330G-ATEAN 4710469342981

46 specifications

TypeThree-phase
Weight8.41 kg
ColourBlack
PDU typesMetered
AC outlets quantity30 AC outlet(s)
Daisy chainYes

See all specifications

Overview

Type: Three-phase
Weight: 8.41 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 30 AC outlet(s)
Daisy chain: Yes

Brand: ATEN
Category: Power Distribution Units (PDUs)
Model: PG95330G
Part number: PG95330G-AT
EAN / UPC: 4710469342981
Also known as: ATEN 32A 30-Outlet 3Phase Metered PDU + Free Eco PDU Manager Software

Specifications

46 specifications in 12 groups

Design

Specification	Value
PDU types	Metered
Type	Three-phase
Rack capacity	0U
Product colour	Black
Display	LCD

Ports & interfaces

Specification	Value
AC outlets quantity	30 AC outlet(s)
Power plug	IEC309
AC outlet types	C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports	4
USB ports quantity	1

Features

Specification	Value
Daisy chain	Yes
Reset button	Yes
Cable length	3 m

Management features

Specification	Value
Monitoring	Current, Humidity, Power, Temperature, Voltage
Management protocols	TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1&V2&V3, Telnet, Modbus
Supported network protocols	IPv6, SMS

Power

Specification	Value
Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	22170 VA
Number of phases	3
Circuit breaker	Yes

Certificates

Specification	Value
Compliance certificates	CE

Sustainability

Specification	Value
Sustainability compliance	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%

Weight & dimensions

Specification	Value
Width	56 mm
Depth	1790 mm
Height	68 mm
Weight	8.41 kg

Packaging content

Specification	Value
Manual	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package weight	10.8 kg
Package width	229 mm
Package depth	1945 mm
Package height	179 mm
Package volume	79853.5074 cm³

Logistics data

Specification	Value
Master (outer) case net weight	8.57 kg
Master (outer) case width	229 mm
Master (outer) case length	1945 mm
Master (outer) case height	179 mm
Master (outer) case gross weight	11.2 kg
Master (outer) case volume	79853.5074 cm³
