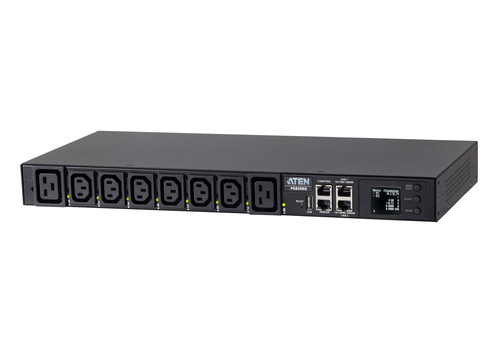

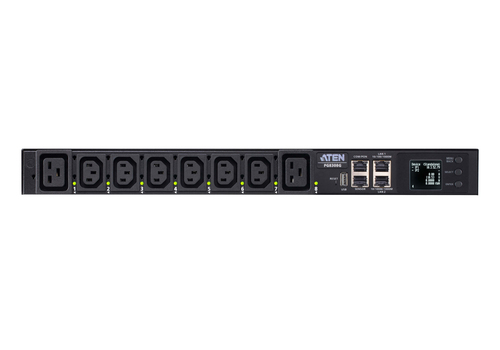

32A 8-Outlet 1U Outlet-Met & Switch
Model PG8308G-ATEAN 4710469345739
27 specifications
- Weight4.07 kg
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity8 AC outlet(s)
- Reset buttonYes
- MonitoringCurrent, Voltage
Overview
- Weight
- 4.07 kg
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 8 AC outlet(s)
- Reset button
- Yes
- Monitoring
- Current, Voltage
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PG8308G-AT
- Part number
- PG8308G-AT
- EAN / UPC
- 4710469345739
- Also known as
- ATEN 32A 8-Outlet 1U Outlet-Met & Switch
Specifications
27 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Rack capacity | 1U |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 32 A |
| Output voltage | 100 - 240 V |
| Load capacity | 7680 VA |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, UKCA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 4.07 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
