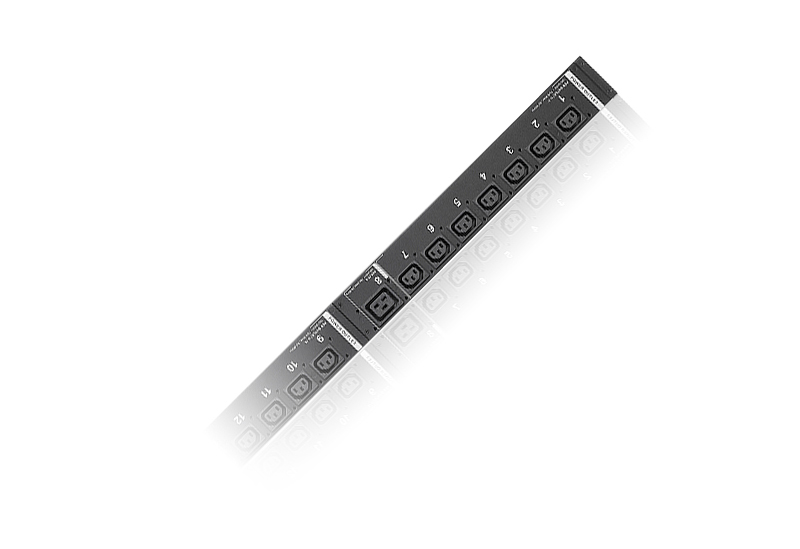

32A 24 Outlet Switched + Metered PDU + Free Eco PDU Manager Software
Model PE8324G-AXEAN 4710423778702
34 specifications
- Weight6.5 kg
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity24 AC outlet(s)
- Cable length1.6 m
- MonitoringCurrent, Voltage
Overview
- Weight
- 6.5 kg
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 1.6 m
- Monitoring
- Current, Voltage
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE8324G-AX
- Part number
- PE8324G-AX
- EAN / UPC
- 4710423778702
- Also known as
- ATEN 32A 24 Outlet Switched + Metered PDU + Free Eco PDU Manager Software
Specifications
34 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 1.6 m |
| Security algorithms | 128-bit SSL, SNMP, SNMPv2, SNMPv3 |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Voltage |
| Supported network protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, Telnet |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 32 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE CE-LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1775 mm |
| Depth | 66 mm |
| Height | 44 mm |
| Weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.98 kg |
| Package width | 229 mm |
| Package depth | 1865 mm |
| Package height | 179 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 6.5 kg |
| Master (outer) case width | 229 mm |
| Master (outer) case length | 1865 mm |
| Master (outer) case height | 179 mm |
| Master (outer) case gross weight | 8.98 kg |
| Products per master (outer) case | 1 pc(s) |
