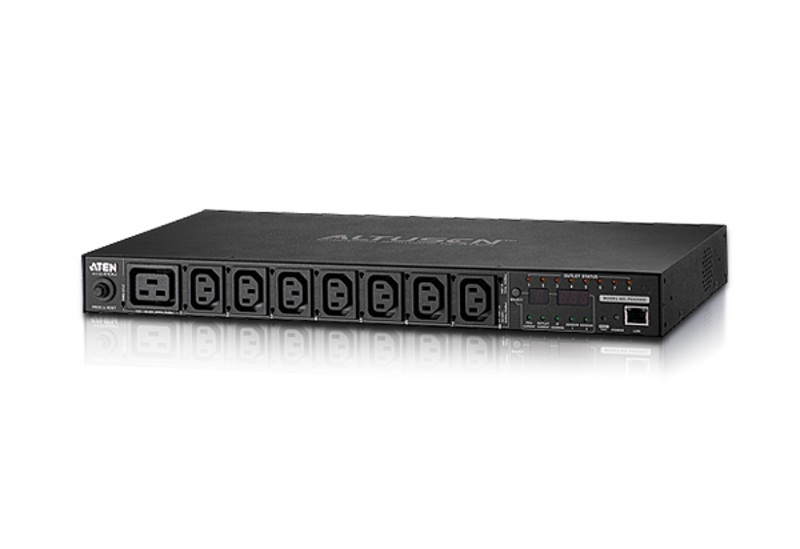

1U 16A 8 Outlet Switched + Metered PDU + Free Eco PDU Manager Software
Model PE8208G-ATB-G
36 specifications
- Power100 W
- Weight3.38 kg
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity8 AC outlet(s)
- LED indicatorsYes
Overview
- Power
- 100 W
- Weight
- 3.38 kg
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- Yes
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE8208G-ATB-G
- Part number
- PE8208G-ATB-G
- Also known as
- ATEN 1U 16A 8 Outlet Switched + Metered PDU + Free Eco PDU Manager Software
Specifications
36 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 100 - 240 V |
| Load capacity | 3680 VA |
| Maximum power | 100 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE TUV-CB CE-LVD GOST |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220.4 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 3.38 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.04 kg |
| Package width | 116 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 10.1 kg |
| Master (outer) case width | 388 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 13.3 kg |
| Products per master (outer) case | 3 pc(s) |
