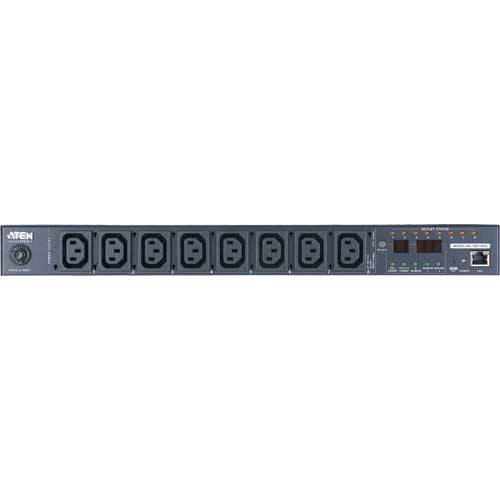

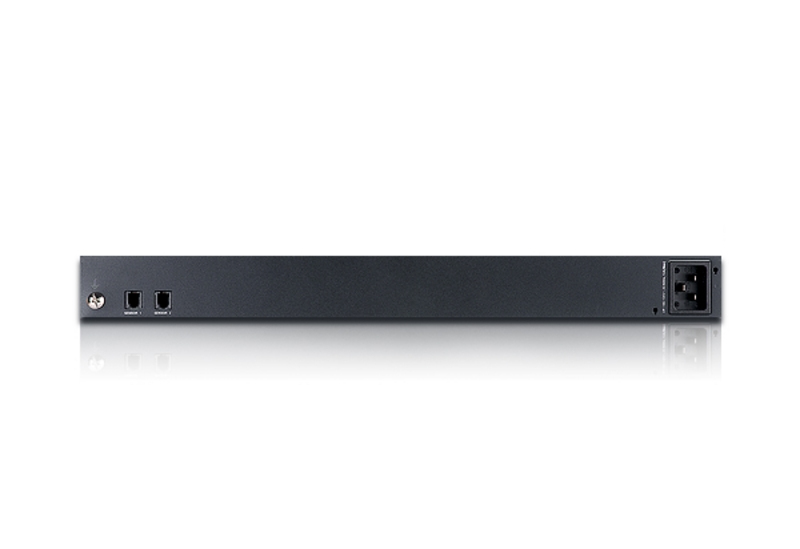

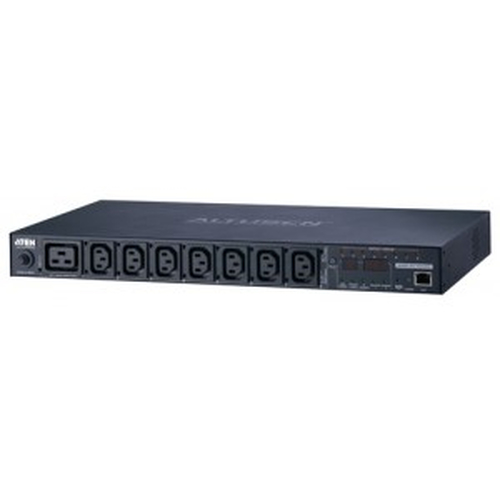

ATEN 1U 10A 8 Outlet Switched + Metered PDU + Free Eco PDU Manager Software
Model PE8108GPart no. DCP2938EAN 672792401046
24 specifications
- Weight2.87 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity8 AC outlet(s)
- LED indicatorsLAN, Link, Power, Status
- MonitoringCurrent
Overview
- Weight
- 2.87 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- LAN, Link, Power, Status
- Monitoring
- Current
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE8108G
- Part number
- DCP2938
- EAN / UPC
- 672792401046, 6727924010468
- Also known as
- ATEN 1U 10A 8 Outlet Switched + Metered PDU + Free Eco PDU Manager Software
Specifications
24 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Metal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | LAN, Link, Power, Status |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 100-240 V |
| Maximum input current per phase | 10 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 219.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 2.87 kg |
