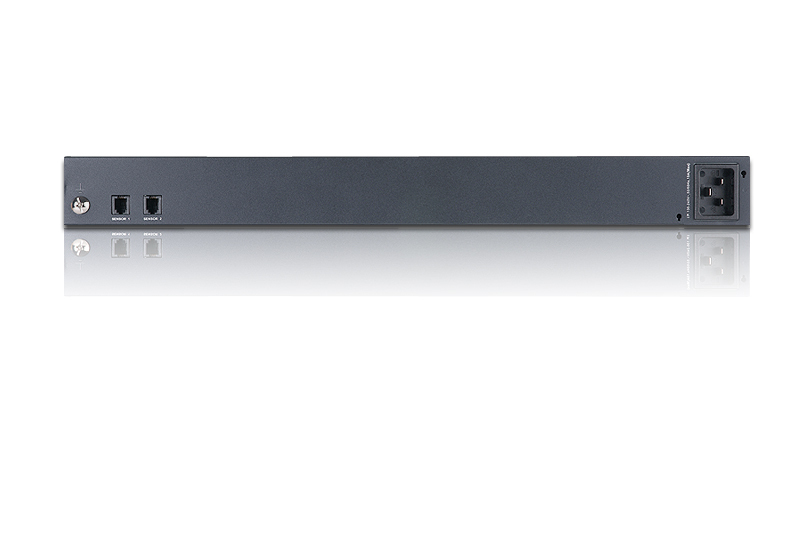

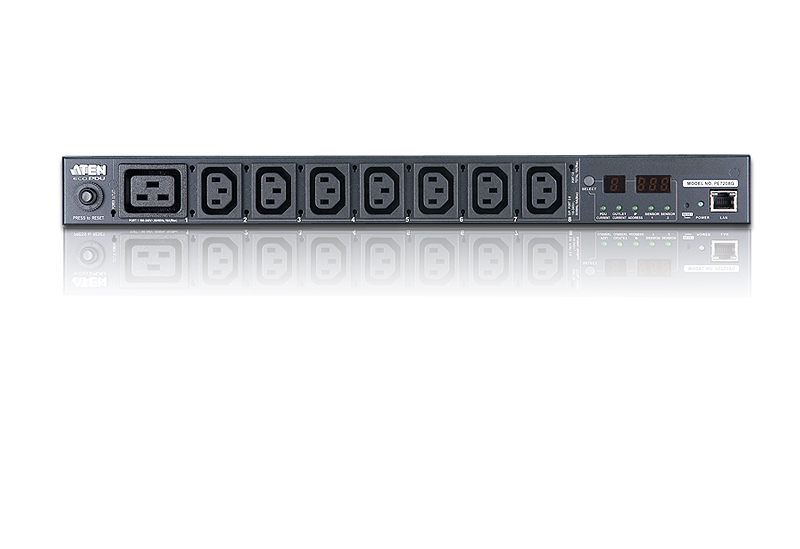

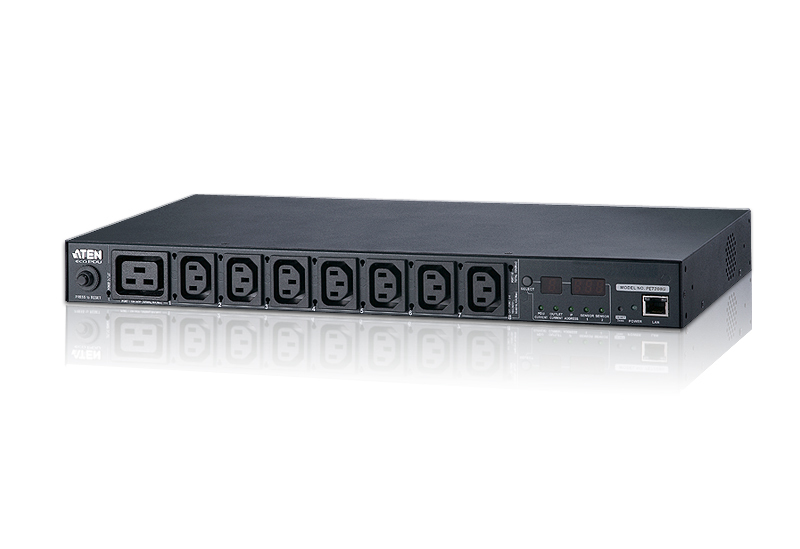

PE7208G-ATA-G power distribution unit (PDU) 8 AC outlet(s) 1U Black
Model PE7208G-ATA-G
18 specifications
- Weight2.74 kg
- ColourBlack
- PDU typesMetered, Monitored
- AC outlets quantity8 AC outlet(s)
- Cable length3 m
- MonitoringHumidity, Temperature
Overview
- Weight
- 2.74 kg
- Colour
- Black
- PDU types
- Metered, Monitored
- AC outlets quantity
- 8 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Humidity, Temperature
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE7208G-ATA-G
- Part number
- PE7208G-ATA-G
- Also known as
- ATEN PE7208G-ATA-G power distribution unit (PDU) 8 AC outlet(s) 1U Black
Specifications
18 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Monitored |
| Rack capacity | 1U |
| Housing material | Metal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Humidity, Temperature |
| Outlet control | Turn on |
| Management platform | SNMP V1,V2&V3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, TUV-CB, CE-LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.74 kg |
