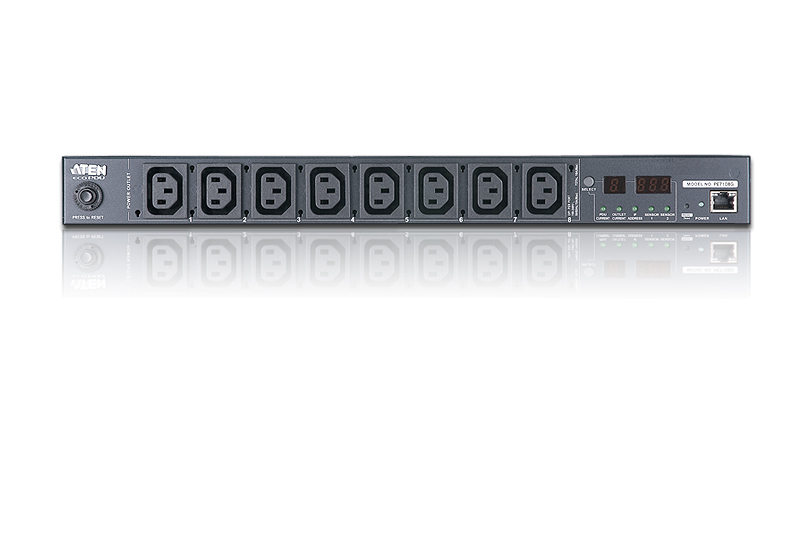

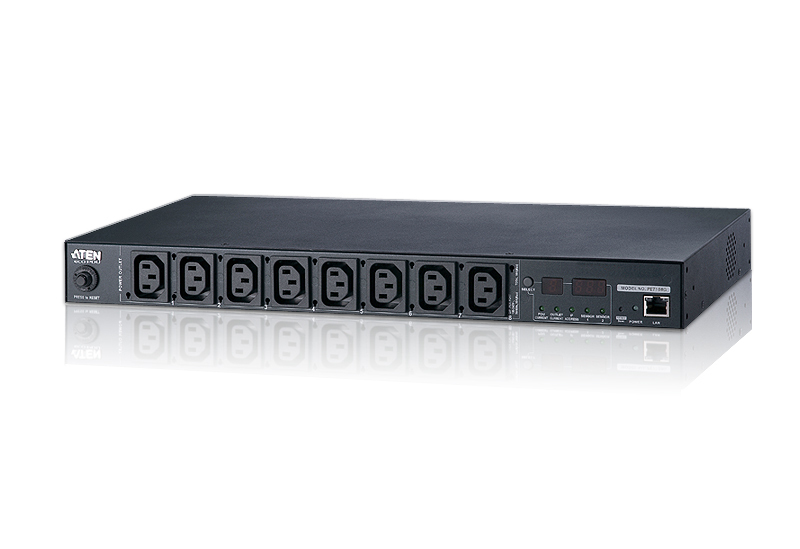

ATEN PE7108G-ATA-G power distribution unit (PDU) 8 AC outlet(s) 1U Black

ATEN PE7108G-ATA-G power distribution unit (PDU) 8 AC outlet(s) 1U Black

Model PE7108G-ATA-G

32 specifications

Weight2.72 kg
ColourBlack
PDU typesMetered
AC outlets quantity8 AC outlet(s)
Cable length3 m
MonitoringCurrent, Power, Voltage

See all specifications

Overview

Weight: 2.72 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 8 AC outlet(s)
Cable length: 3 m
Monitoring: Current, Power, Voltage

Brand: ATEN
Category: Power Distribution Units (PDUs)
Model: PE7108G-ATA-G
Part number: PE7108G-ATA-G
Also known as: ATEN PE7108G-ATA-G power distribution unit (PDU) 8 AC outlet(s) 1U Black

Specifications

32 specifications in 11 groups

Design

Specification	Value
PDU types	Metered
Rack capacity	1U
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Ethernet LAN (RJ-45) ports	1

Features

Specification	Value
Cable length	3 m
Security algorithms	128-bit SSL

Management features

Specification	Value
Monitoring	Current, Power, Voltage
Supported network protocols	TCP / IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet and SNMP V1, V2 & V3

Power

Specification	Value
Nominal input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Maximum current	10 A
Load capacity	2300 VA

Certificates

Specification	Value
Certification	CE, TÜV-CB, CE-LVD

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating altitude	0 - 3000 m

Weight & dimensions

Specification	Value
Width	432.4 mm
Depth	220.4 mm
Height	44 mm
Weight	2.72 kg

Packaging content

Specification	Value
Cables included	AC
Manual	Yes

Packaging data

Specification	Value
Package width	116 mm
Package depth	499 mm
Package height	324 mm

Logistics data

Specification	Value
Master (outer) case net weight	9.36 kg
Master (outer) case width	388 mm
Master (outer) case length	519 mm
Master (outer) case height	348 mm
Master (outer) case gross weight	11.6 kg
