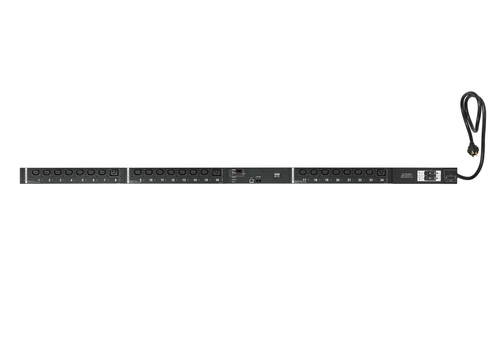

30A/32A 24-Outlet Metered & Switched Low Profile eco PDU
Model PE6324LBEAN 672792402739
31 specifications
- Weight5.76 kg
- ColourBlack
- PDU typesMetered, Monitored
- AC outlets quantity24 AC outlet(s)
- Cable length1.6 m
- MonitoringCurrent, Power, Voltage
Overview
- Weight
- 5.76 kg
- Colour
- Black
- PDU types
- Metered, Monitored
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 1.6 m
- Monitoring
- Current, Power, Voltage
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE6324LB
- Part numbers
- PE6324LB, PE6324LB-AX
- EAN / UPC
- 672792402739
- Also known as
- ATEN 30A/32A 24-Outlet Metered & Switched Low Profile eco PDU
Specifications
31 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Monitored |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 1.6 m |
| Security algorithms | 128-bit SSL |
| Password protection | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Block 1 output current | 15 A |
| Block 2 output current | 15 A |
| Nominal output voltage | 100 - 240 V |
| Load capacity | 6240 VA |
| Power protection features | Overload |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC) |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 1775 mm |
| Height | 44 mm |
| Weight | 5.76 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
