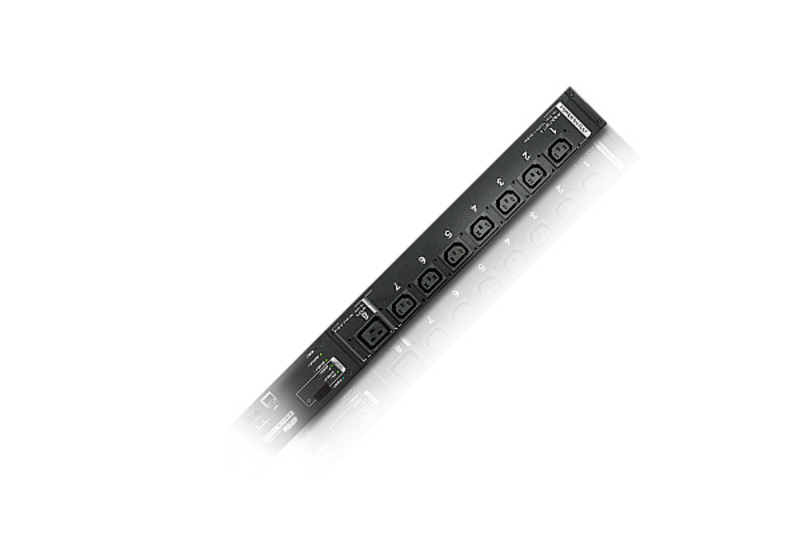

16A 16 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software
Model PE6216G-AX-GEAN 672792401268
39 specifications
- Weight4.27 kg
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity16 AC outlet(s)
- LED indicatorsYes
- MonitoringCurrent, Voltage
Overview
- Weight
- 4.27 kg
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 16 AC outlet(s)
- LED indicators
- Yes
- Monitoring
- Current, Voltage
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE6216G-AX-G
- Part number
- PE6216G-AX-G
- EAN / UPC
- 672792401268, 4710423778337
- Also known as
- ATEN 16A 16 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software
Specifications
39 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Rack capacity | 0U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Voltage |
| Supported network protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, Ping, Telnet |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 16 A |
| Load capacity | 3680 VA |
| Power protection features | Overload |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, C-Tick TUV-CB, GOST |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1324.8 mm |
| Depth | 66 mm |
| Height | 44 mm |
| Weight | 4.27 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6 kg |
| Package width | 187 mm |
| Package depth | 1415 mm |
| Package height | 179 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 4.27 kg |
| Master (outer) case width | 187 mm |
| Master (outer) case length | 1415 mm |
| Master (outer) case height | 179 mm |
| Master (outer) case gross weight | 6.02 kg |
| Products per master (outer) case | 1 pc(s) |
