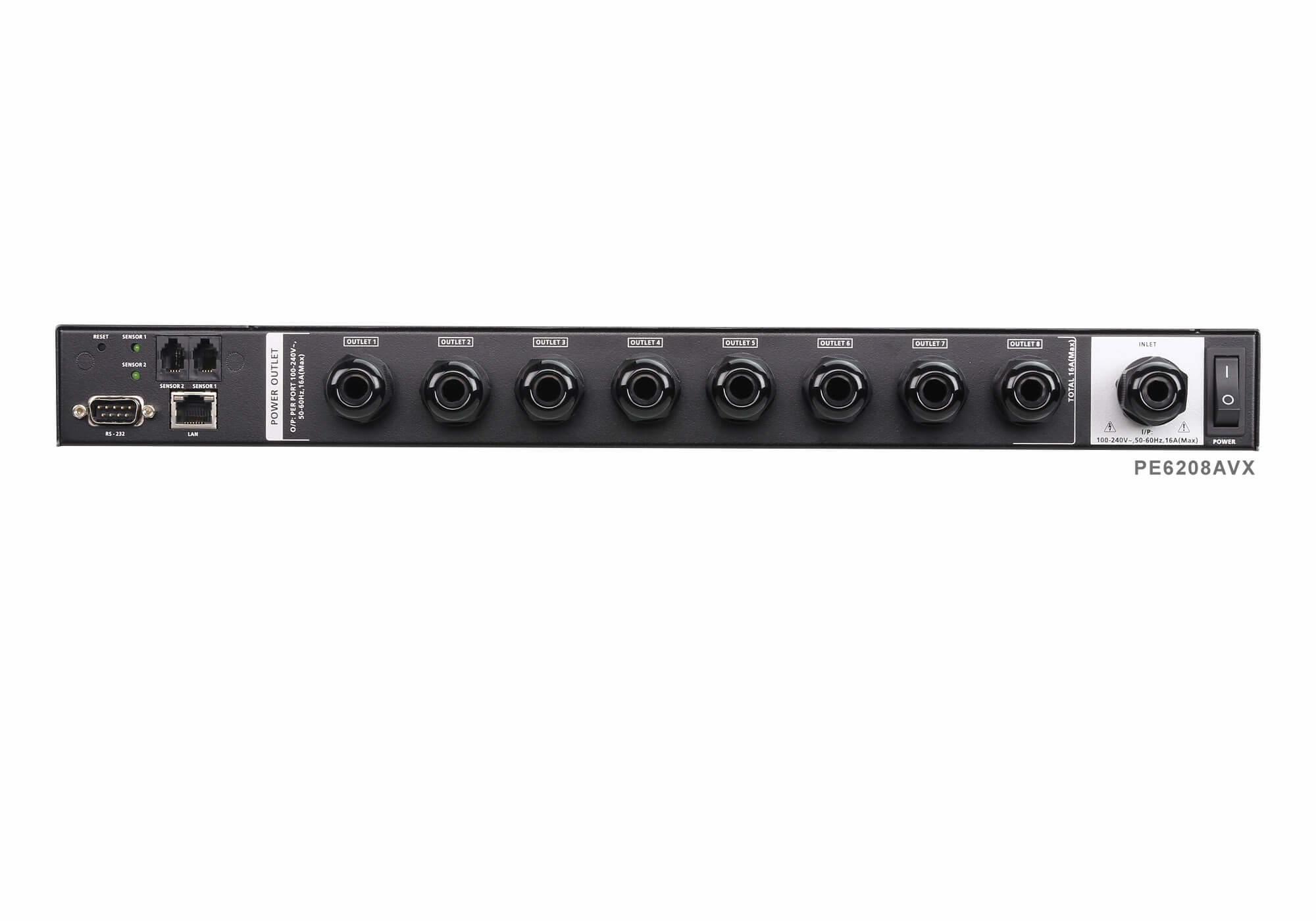

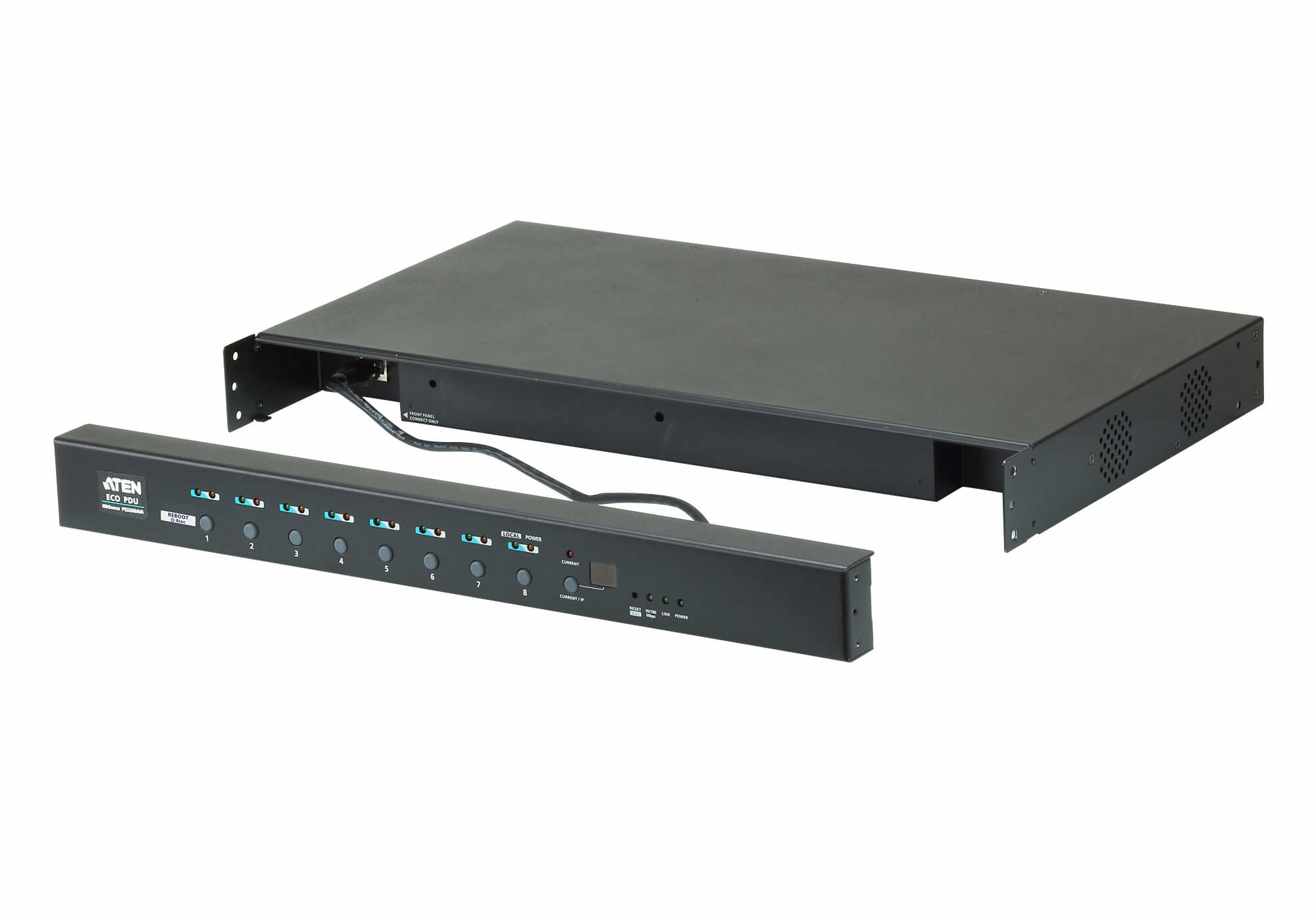

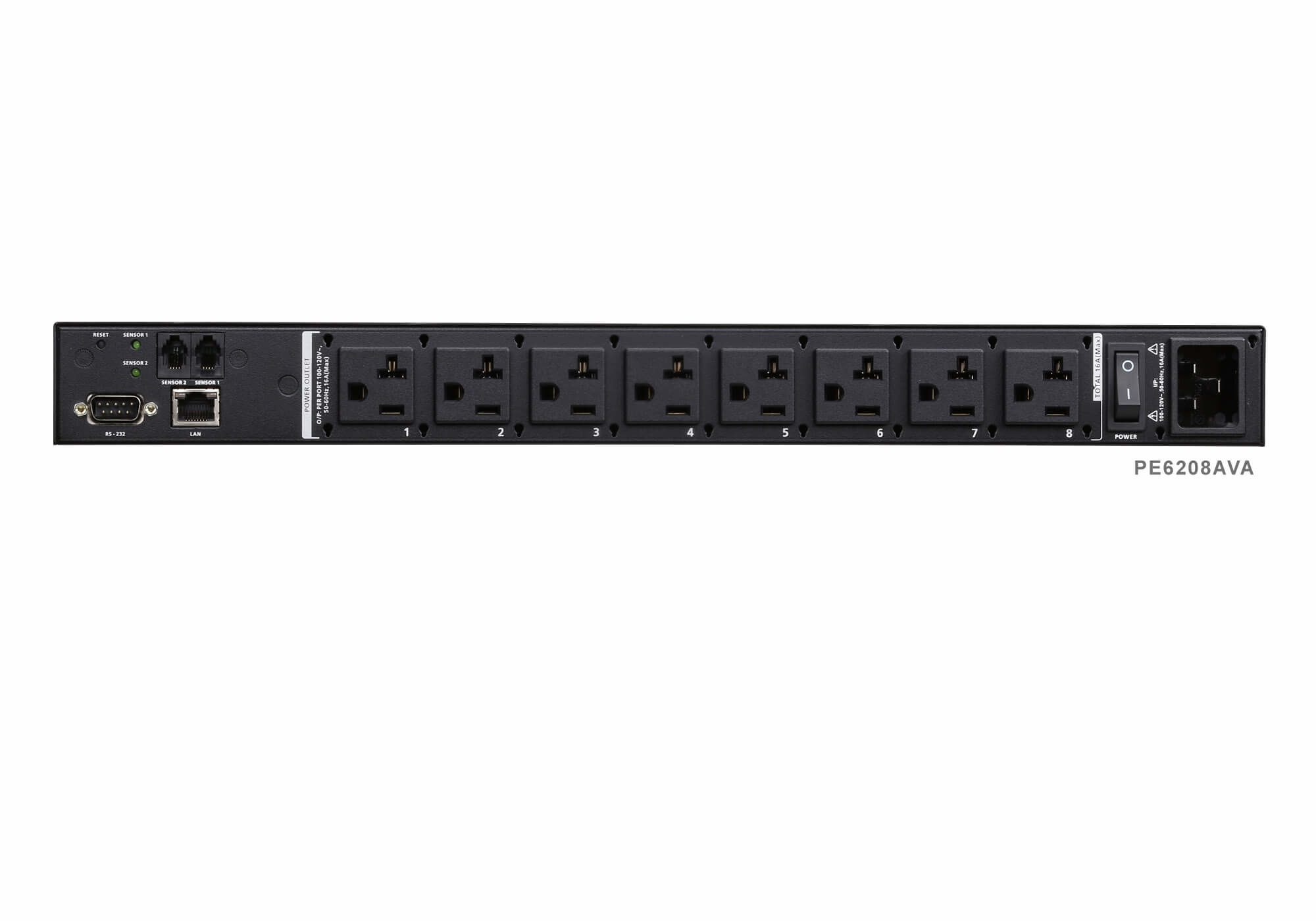

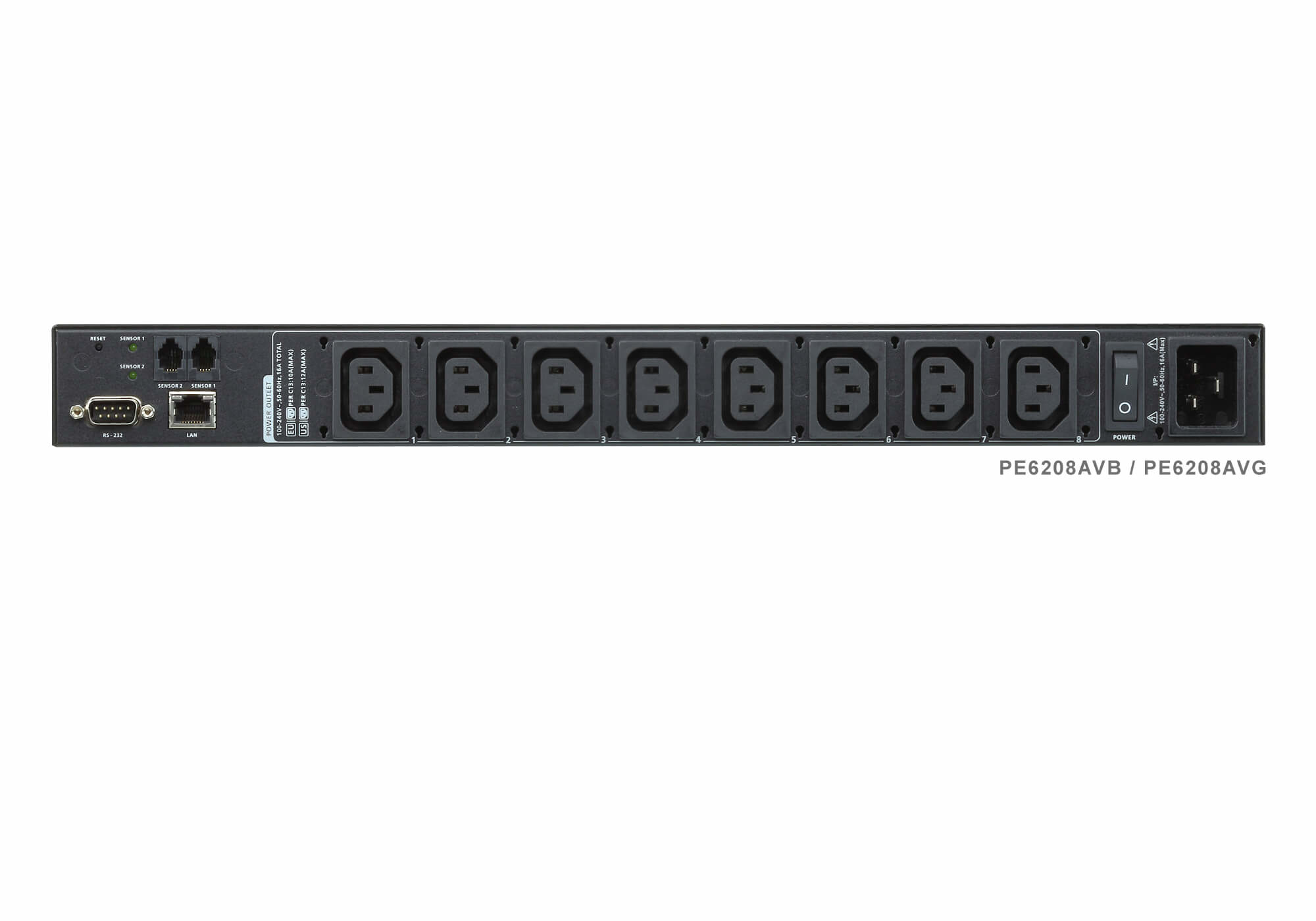

1U AV 16A 8 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software
Model PE6208AVEAN 672792008818
27 specifications
- Weight4.67 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity8 AC outlet(s)
- LED indicatorsYes
- Management protocolsSNMP V1, V2, V3, Telnet
Overview
- Weight
- 4.67 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- Yes
- Management protocols
- SNMP V1, V2, V3, Telnet
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE6208AV
- Part number
- PE6208AV
- EAN / UPC
- 672792008818, 4719264647437
- Also known as
- ATEN 1U AV 16A 8 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software
Specifications
27 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | NEMA L5-20P |
| AC outlet types | NEMA 5–20R |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
| Security algorithms | 128-bit SSL |
| Password protection | Yes |
Management features
| Specification | Value |
|---|---|
| Management protocols | SNMP V1, V2, V3, Telnet |
| Supported network protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 120 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 20 A |
| Power protection features | Overload |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, J55032 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432.4 mm |
| Depth | 363.9 mm |
| Height | 44 mm |
| Weight | 4.67 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
