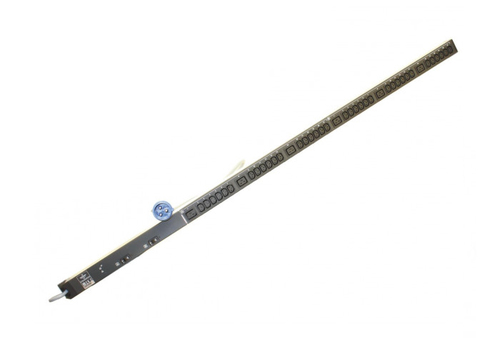

ATEN 32A 42 Outlet Bank Metered PDU

ATEN 32A 42 Outlet Bank Metered PDU

Model PE5342TGEAN 672792403484

24 specifications

Weight5.57 kg
ColourBlack
PDU typesMetered, Monitored
AC outlets quantity42 AC outlet(s)
Cable length3 m
MonitoringHumidity, Temperature

See all specifications

Overview

Weight: 5.57 kg
Colour: Black
PDU types: Metered, Monitored
AC outlets quantity: 42 AC outlet(s)
Cable length: 3 m
Monitoring: Humidity, Temperature

Brand: ATEN
Category: Power Distribution Units (PDUs)
Model: PE5342TG
Part number: PE5342TG
EAN / UPC: 672792403484, 4719264643521
Also known as: ATEN 32A 42 Outlet Bank Metered PDU

Specifications

24 specifications in 9 groups

Design

Specification	Value
PDU types	Metered, Monitored
Rack capacity	0U
Housing material	Metal
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Output connections	36 x IEC320 C13 + 6 x IEC320 C19

Features

Specification	Value
Cable length	3 m

Management features

Specification	Value
Monitoring	Humidity, Temperature
Outlet control	Turn on
Management platform	SNMP V1,V2&V3

Power

Specification	Value
Nominal input voltage	100-240 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	100-240 V

Certificates

Specification	Value
Certification	CE, CE-LVD

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Specification	Value
Width	56 mm
Depth	1775 mm
Height	48 mm
Weight	5.57 kg

Packaging content

Specification	Value
Packaging content	1x PE5342TG eco PDU, 1x Mounting Kit, 1x User Instructions
