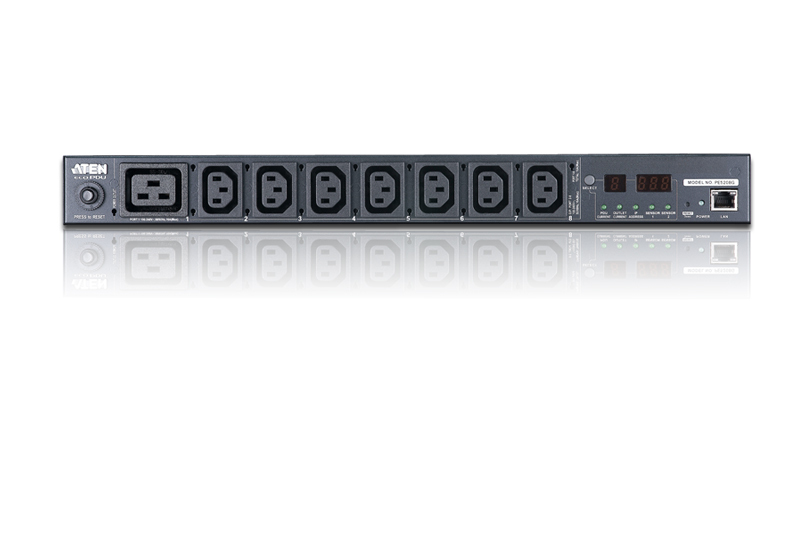

PE5208G-AX-G power distribution unit (PDU) 8 AC outlet(s) 1U Black
Model PE5208G-AX-GEAN 4719264642128
21 specifications
- Weight2.71 kg
- ColourBlack
- Rack capacity1U
- AC outlets quantity8 AC outlet(s)
- Cable length3 m
- MonitoringCurrent, Voltage
Overview
- Weight
- 2.71 kg
- Colour
- Black
- Rack capacity
- 1U
- AC outlets quantity
- 8 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Current, Voltage
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE5208G-AX-G
- Part number
- PE5208G-AX-G
- EAN / UPC
- 4719264642128
- Also known as
- ATEN PE5208G-AX-G power distribution unit (PDU) 8 AC outlet(s) 1U Black
Specifications
21 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Voltage |
| Supported network protocols | TCP / IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet and SNMP V1, V2 & V3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 16 A |
| Load capacity | 3680 VA |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, TÜV-CB, CE-LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432.4 mm |
| Depth | 220.4 mm |
| Height | 44 mm |
| Weight | 2.71 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
