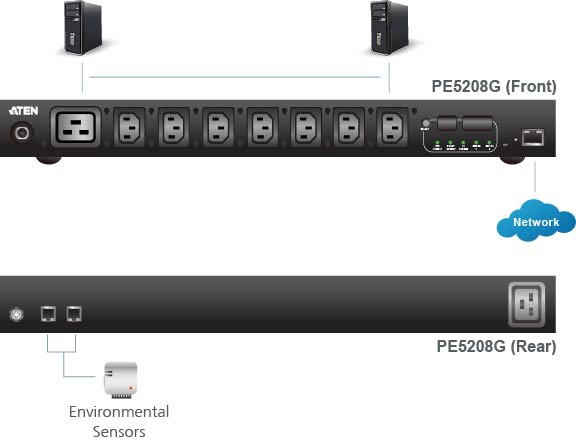

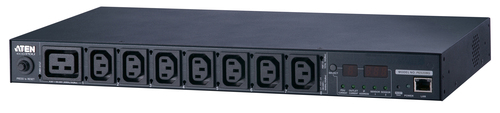

PE5208G-ATA-G power distribution unit (PDU) 8 AC outlet(s) 1U Black
Model PE5208G-ATA-G
27 specifications
- Weight2.71 kg
- ColourBlack
- PDU typesMetered, Monitored
- AC outlets quantity8 AC outlet(s)
- LED indicatorsYes
- MonitoringHumidity, Temperature
Overview
- Weight
- 2.71 kg
- Colour
- Black
- PDU types
- Metered, Monitored
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- Yes
- Monitoring
- Humidity, Temperature
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE5208G-ATA-G
- Part number
- PE5208G-ATA-G
- Also known as
- ATEN PE5208G-ATA-G power distribution unit (PDU) 8 AC outlet(s) 1U Black
Specifications
27 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Monitored |
| Rack capacity | 1U |
| Housing material | Metal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | 7 x IEC320 C13 + 1 x IEC320 C19 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Humidity, Temperature |
| Outlet control | Turn on |
| Management platform | SNMP V1,V2&V3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 100-240 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, TUV-CB, CE-LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220.4 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 2.71 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Packaging content | 1x PE5208 eco PDU, 1x Mounting Kit, 1x Power Cord, 1x CD-ROM (Manual, eco Sensors Software), 1x User Instructions |
