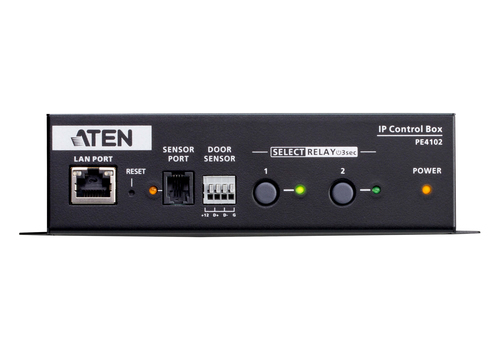

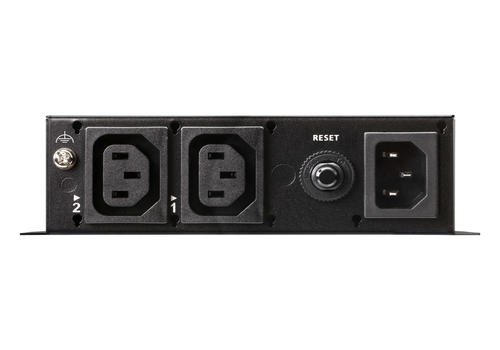

2-Outlet Eco PDU Power Controller
Model PE4102GPart no. PE4102G-AT-GEAN 4711581520578
38 specifications
- Weight980 g
- ColourBlack
- PDU typesManaged
- AC outlets quantity2 AC outlet(s)
- Cable length3 m
- Nominal input voltage100 - 240 V
Overview
- Weight
- 980 g
- Colour
- Black
- PDU types
- Managed
- AC outlets quantity
- 2 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 100 - 240 V
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE4102G
- Part number
- PE4102G-AT-G
- EAN / UPC
- 4711581520578
- Also known as
- ATEN 2-Outlet Eco PDU Power Controller
Specifications
38 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Managed |
| Rack mounting | Yes |
| Mounting type | Desk/Wall |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 2 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
| Password protection | Yes |
Management features
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 100 - 240 V |
| Load capacity | 2400 VA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Low Voltage Directive (LVD), CE, Electromagnetic Compatibility (EMC) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127.8 mm |
| Depth | 170 mm |
| Height | 44 mm |
| Weight | 980 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.27 kg |
| Package width | 95 mm |
| Package depth | 265 mm |
| Package height | 220 mm |
| Package volume | 5550.101932032 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case net weight | 4.9 kg |
| Master (outer) case width | 232 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 283 mm |
| Master (outer) case gross weight | 6.92 kg |
| Master (outer) case volume | 32819.225200128 cm³ |
