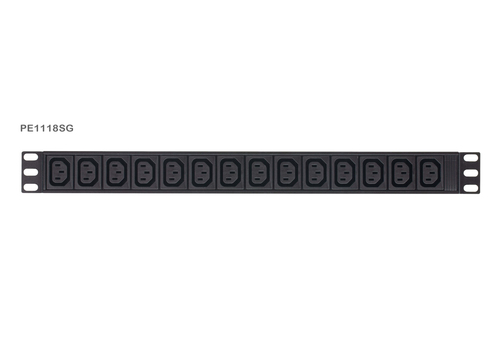

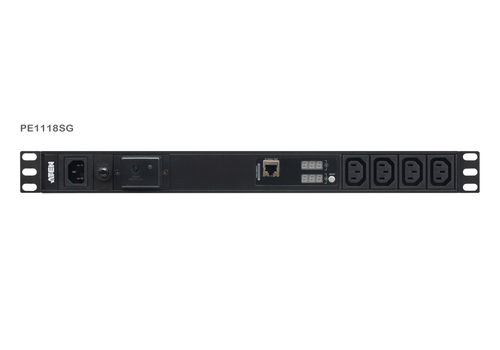

Basic Metered 1U PDU with Surge Protection
Model PE1118SG-AT-GEAN 672792012587
30 specifications
- Weight1.3 kg
- ColourBlack
- PDU typesBasic, Metered
- AC outlets quantity18 AC outlet(s)
- Cable length3 m
- MonitoringCurrent
Overview
- Weight
- 1.3 kg
- Colour
- Black
- PDU types
- Basic, Metered
- AC outlets quantity
- 18 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Current
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE1118SG-AT-G
- Part number
- PE1118SG-AT-G
- EAN / UPC
- 672792012587, 4710469340772
- Also known as
- ATEN Basic Metered 1U PDU with Surge Protection
Specifications
30 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic, Metered |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 18 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Load capacity | 2400 VA |
| Power protection features | Over current |
| Surge protection | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Low Voltage Directive (LVD) |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44.4 mm |
| Depth | 440 mm |
| Height | 88.5 mm |
| Weight | 1.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Packaging content | 1x Basic Metered 1U PDU with Surge Protection 1x Power Cord 1x User Instructions |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
