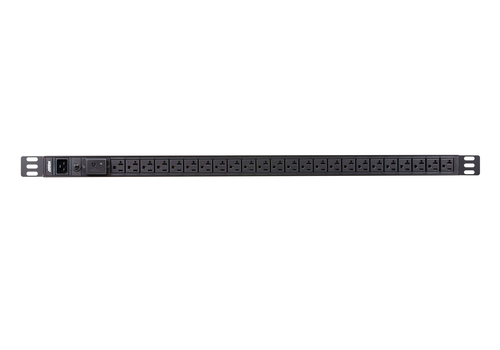

PE0224SA power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model PE0224SAEAN 672792010774
23 specifications
- Weight1.4 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity24 AC outlet(s)
- Cable length3 m
- Nominal input voltage100 - 240 V
Overview
- Weight
- 1.4 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 100 - 240 V
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE0224SA
- Part number
- PE0224SA
- EAN / UPC
- 672792010774
- Also known as
- ATEN PE0224SA power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
23 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Load capacity | 2400 VA |
| Power protection features | Over current, Over voltage |
| Surge protection | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE A, CE, LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44.4 mm |
| Depth | 966.8 mm |
| Height | 60 mm |
| Weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
