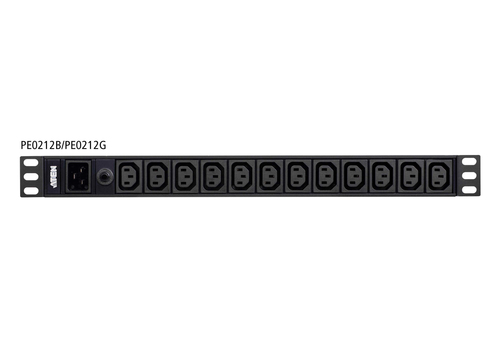

1U 16A 12Port Basic PDU
Model PE0212GPart no. PE0212G-AT-GEAN 672792009174
31 specifications
- TypeSingle-phase
- Weight1.3 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity12 AC outlet(s)
- Nominal input voltage100 - 240 V
Overview
- Type
- Single-phase
- Weight
- 1.3 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 12 AC outlet(s)
- Nominal input voltage
- 100 - 240 V
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE0212G
- Part numbers
- PE0212G-AT-G, PE0212G
- EAN / UPC
- 672792009174, 2000001254660, 4719264647215
- Also known as
- ATEN 1U 16A 12Port Basic PDU
Specifications
31 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 16 A |
| Load capacity | 3840 VA |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 488 mm |
| Depth | 44 mm |
| Height | 45 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.49 kg |
| Package width | 112 mm |
| Package depth | 697 mm |
| Package height | 82 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 13 kg |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 710 mm |
| Master (outer) case height | 188 mm |
| Master (outer) case gross weight | 14.9 kg |
| Products per master (outer) case | 10 pc(s) |
