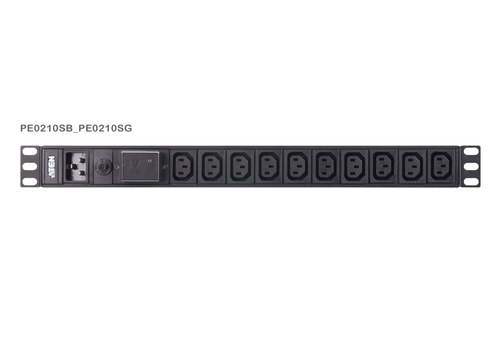

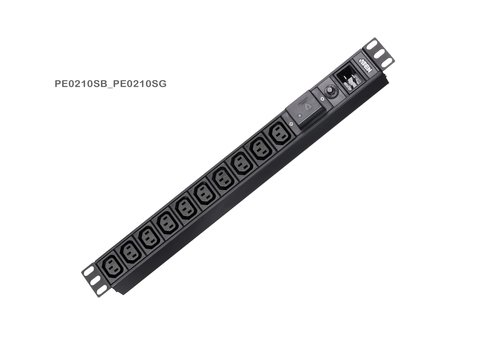

1U 16A 10Port Basic PDU
Model PE0210SG-AT-GEAN 2000001254677
31 specifications
- Weight1.37 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity10 AC outlet(s)
- Cable length3 m
- Nominal input voltage100 - 240 V
Overview
- Weight
- 1.37 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 10 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 100 - 240 V
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE0210SG-AT-G
- Part number
- PE0210SG-AT-G
- EAN / UPC
- 2000001254677, 4719264648373
- Also known as
- ATEN 1U 16A 10Port Basic PDU
Specifications
31 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | IEC 320 |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| Maximum current | 16 A |
| Load capacity | 3840 VA |
Certificates
| Specification | Value |
|---|---|
| Certification | CE,LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44.4 mm |
| Depth | 482 mm |
| Height | 45 mm |
| Weight | 1.37 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.4 kg |
| Package width | 112 mm |
| Package depth | 697 mm |
| Package height | 82 mm |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 13.7 kg |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 710 mm |
| Master (outer) case height | 188 mm |
| Master (outer) case gross weight | 15.3 kg |
| Products per master (outer) case | 10 pc(s) |
