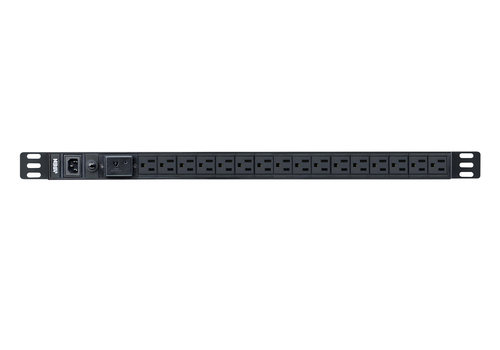

PE0116SA power distribution unit (PDU) 16 AC outlet(s) 0U Black
Model PE0116SAEAN 672792010736
27 specifications
- Weight1.1 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity16 AC outlet(s)
- Cable length3 m
- Nominal input voltage100 - 240 V
Overview
- Weight
- 1.1 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 16 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 100 - 240 V
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE0116SA
- Part number
- PE0116SA
- EAN / UPC
- 672792010736
- Also known as
- ATEN PE0116SA power distribution unit (PDU) 16 AC outlet(s) 0U Black
Specifications
27 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 15 A |
| Load capacity | 1800 VA |
| Power protection features | Over current |
| Surge protection | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44.4 mm |
| Depth | 715.6 mm |
| Height | 60 mm |
| Weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.29 kg |
| Package width | 207 mm |
| Package depth | 810 mm |
| Package height | 166 mm |
