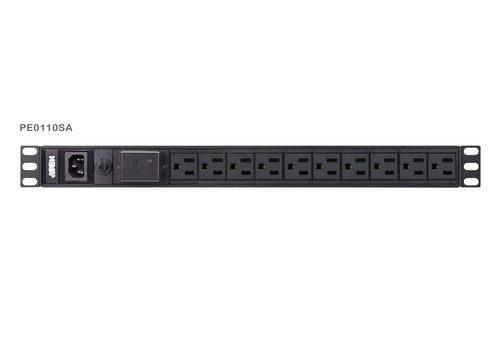

PE0110SA power distribution unit (PDU) 10 AC outlet(s) 1U Black
Model PE0110SAEAN 672792010378
18 specifications
- Weight660 g
- ColourBlack
- PDU typesBasic
- AC outlets quantity10 AC outlet(s)
- Nominal input voltage100 - 120 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 660 g
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 10 AC outlet(s)
- Nominal input voltage
- 100 - 120 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE0110SA
- Part number
- PE0110SA
- EAN / UPC
- 672792010378
- Also known as
- ATEN PE0110SA power distribution unit (PDU) 10 AC outlet(s) 1U Black
Specifications
18 specifications in 5 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 120 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 15 A |
| Power protection features | Over current |
| Surge protection | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 44.4 mm |
| Height | 45 mm |
| Weight | 660 g |
