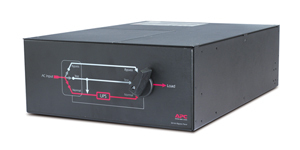

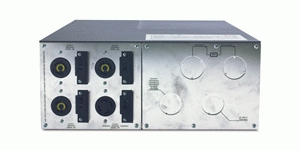

Service Bypass Panel 200/208/240V
Model Service Bypass Panel 200/208/240VPart no. SBP16KRMP4U-HWEAN 731304225195
21 specifications
- Weight23.2 kg
- ColourBlack
- Nominal input voltage208 V
- Operating temperature (T-T)-20 - 50 °C
- Width432 mm
Overview
- Weight
- 23.2 kg
- Colour
- Black
- Nominal input voltage
- 208 V
- Operating temperature (T-T)
- -20 - 50 °C
- Width
- 432 mm
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Service Bypass Panel 200/208/240V
- Part number
- SBP16KRMP4U-HW
- EAN / UPC
- 731304225195, 7313042251952
- Also known as
- APC Service Bypass Panel 200/208/240V power distribution unit (PDU) Black
Specifications
21 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | Hard Wire 3-wire (2PH + G), Hard Wire 4-wire (2PH+N+G) |
| Output connections | Hard Wire 3-wire (2PH + G) 1x Hard Wire 4-wire (2PH + N +G) 1x NEMA L14-30R 3x NEMA L5-20R |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Load capacity | 20000 VA |
| Maximum input current per phase | 100 A |
| Maximum total current draw per phase | 100 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 673 mm |
| Height | 178 mm |
| Weight | 23.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 33.6 kg |
| Package width | 610 mm |
| Package depth | 991 mm |
| Package height | 305 mm |
