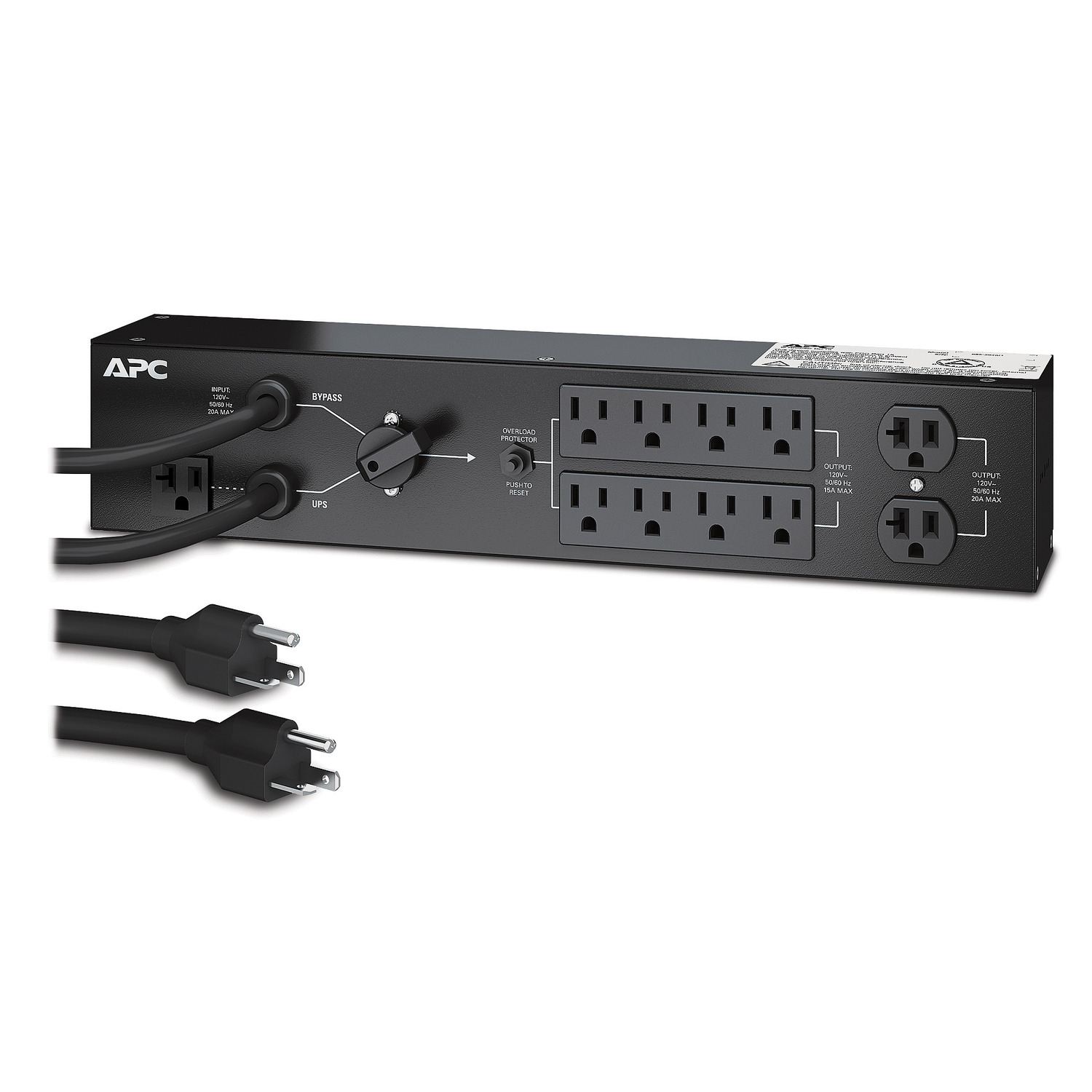

APC Service Bypass PDU

APC Service Bypass PDU

120V 20AMP W/ (8) NEMA 5-15R AND (2) 5-20R

Model SBP2200RMEAN 731304266754

36 specifications
  • Weight2.95 kg
  • ColourBlack
  • PDU typesBasic
  • AC outlets quantity8 AC outlet(s)
  • Cable length2.4 m
  • Nominal input voltage120 V
See all specifications

Overview

Weight
2.95 kg
Colour
Black
PDU types
Basic
AC outlets quantity
8 AC outlet(s)
Cable length
2.4 m
Nominal input voltage
120 V
Brand
APC
Model
SBP2200RM
Part number
SBP2200RM
EAN / UPC
731304266754, 7313042667548
Also known as
APC Service Bypass PDU, 120V 20AMP W/ (8) NEMA 5-15R AND (2) 5-20R

Specifications

36 specifications in 10 groups

Design

PDU typesBasic
Rack capacity2U
Product colourBlack

Ports & interfaces

AC outlets quantity8 AC outlet(s)
Power plugNEMA 5–20P
Output connections6 x NEMA 5-15R & 2 x NEMA 5-20R

Features

Cable length2.4 m

Power

Nominal input voltage120 V
AC input frequency50 - 60 Hz
Nominal output voltage120 V
Load capacity2200 VA
Maximum input current per phase20 A
Maximum total current draw per phase20 A

Certificates

Compliance certificatesRoHS, REACH, WEEE
CertificationTÜV

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 4500 m
Non-operating altitude0 - 15000 m

Weight & dimensions

Width432 mm
Depth76 mm
Height89 mm
Weight2.95 kg

Packaging data

Package weight3.8 kg
Package width463 mm
Package depth295 mm
Package height151 mm

Technical details

Packaging recycled materialsRecycled cardboard
Preferred mounting positionno preference
Packaging without single use plasticNo
SCIP number31346aed-552c-4a16-81d9-e683a383b6da
Sustainable packagingNo
Take-back systemNo

Logistics data

Customs product code (TARIC)8537109899
