Rack PDU, Switched, Zero U, 11kW, 230V, (21) C13, (3) C19
Model Rack PDU, Switched, Zero U, 11kW, 230V, (21) C13, (3) C19Part no. AP7957EAN 731304254096
22 specifications
- Weight5.45 kg
- ColourBlack

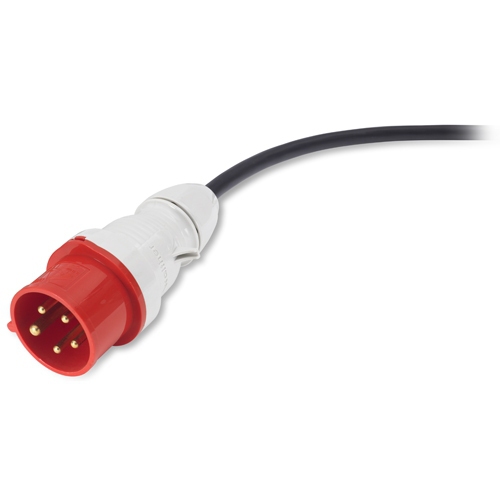

- Input connection typeIEC 309 16A 3P+N+PE
- Cable length0.91 m
- Nominal input voltage400 V
- Operating temperature (T-T)-5 - 45 °C
Overview
- Weight
- 5.45 kg
- Colour
- Black
- Input connection type
- IEC 309 16A 3P+N+PE
- Cable length
- 0.91 m
- Nominal input voltage
- 400 V
- Operating temperature (T-T)
- -5 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack PDU, Switched, Zero U, 11kW, 230V, (21) C13, (3) C19
- Part number
- AP7957
- EAN / UPC
- 731304254096, 7313042541190
- Also known as
- APC Rack PDU, Switched, Zero U, 11kW, 230V, (21) C13, (3) C19 power distribution unit (PDU) Black
Specifications
22 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | IEC 309 16A 3P+N+PE |
| Output connections | (21) IEC 320 C13, (3) IEC 320 C19 |
Features
| Specification | Value |
|---|---|
| Cable length | 0.91 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 230 V |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | C-tick,CCC,CE,GOST,MIC,Queensland Australia,VDE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.45 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.86 kg |
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2134 mm |
