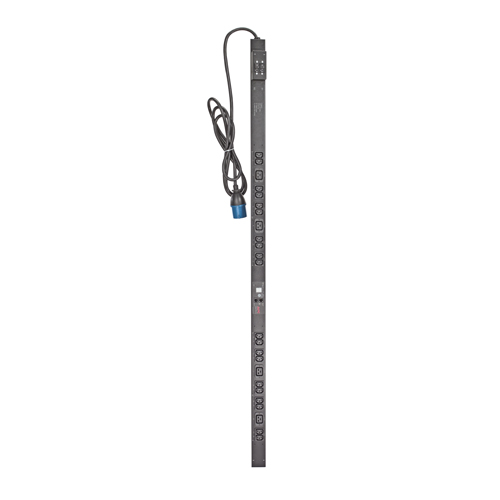

Rack PDU, Metered, Zero U, 32A, 230V, (20)C13 & (4)C19
Model Rack PDU, Metered, Zero U, 32A, 230V, (20)C13 & (4)C19Part no. SYCF80KH
18 specifications
- Weight5.68 kg
- ColourBlack
- Input connection typeIEC 309 32A
- Nominal input voltage230 V
- Operating temperature (T-T)-25 - 65 °C
- Width56 mm
Overview
- Weight
- 5.68 kg
- Colour
- Black
- Input connection type
- IEC 309 32A
- Nominal input voltage
- 230 V
- Operating temperature (T-T)
- -25 - 65 °C
- Width
- 56 mm
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack PDU, Metered, Zero U, 32A, 230V, (20)C13 & (4)C19
- Part number
- SYCF80KH
- Also known as
- APC Rack PDU, Metered, Zero U, 32A, 230V, (20)C13 & (4)C19 power distribution unit (PDU) Black
Specifications
18 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | IEC 309 32A |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
| I/O ports | (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Output voltage | 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 65 °C |
| Storage temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1245 mm |
| Weight | 5.68 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.59 kg |
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2134 mm |
