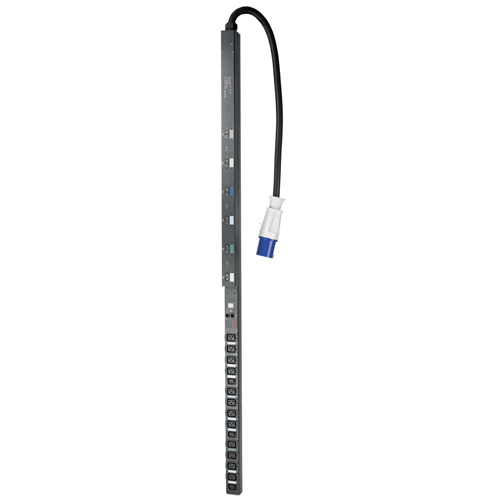

APC Rack PDU, Metered, Zero U, 16.2KW, 208V

APC Rack PDU, Metered, Zero U, 16.2KW, 208V

Model Rack PDU, Metered, Zero U, 16.2KW, 208VPart no. AP7866EAN 731304259718

16 specifications

Weight9.3 kg
Input connection typeIEC 309 60A 3P+PE
Cable length0.91 m
Nominal input voltage208 V
Operating temperature (T-T)-5 - 60 °C
Width56 mm

See all specifications

Overview

Weight: 9.3 kg
Input connection type: IEC 309 60A 3P+PE
Cable length: 0.91 m
Nominal input voltage: 208 V
Operating temperature (T-T): -5 - 60 °C
Width: 56 mm

Brand: APC
Category: Power Distribution Units (PDUs)
Model: Rack PDU, Metered, Zero U, 16.2KW, 208V
Part number: AP7866
EAN / UPC: 731304259718, 999992657265, 7313042597180
Also known as: APC Rack PDU, Metered, Zero U, 16.2KW, 208V power distribution unit (PDU)

Specifications

16 specifications in 6 groups

Ports & interfaces

Specification	Value
Input connection type	IEC 309 60A 3P+PE
Output connections	3x IEC 320 C13 12x IEC 320 C19

Features

Specification	Value
Cable length	0.91 m

Power

Specification	Value
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Nominal output voltage	208 V
Load capacity	16200 VA
Maximum input current per phase	60 A
Maximum total current draw per phase	45 A

Certificates

Specification	Value
Certification	cUL Listed,CSA C22.2 No. 60950-1-03,FCC Part 15 Class A,ICES-003,Industry Canada,UL 60950-1,UL Listed,VCCI Class A, RoHS 7b

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C

Weight & dimensions

Specification	Value
Width	56 mm
Depth	73 mm
Height	1778 mm
Weight	9.3 kg
