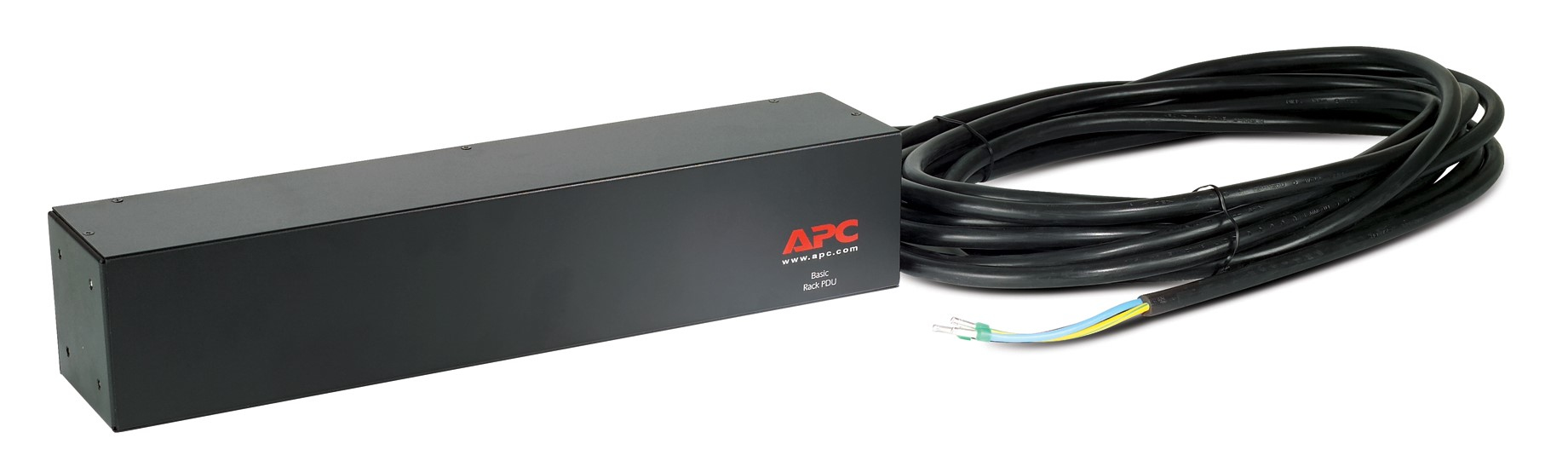

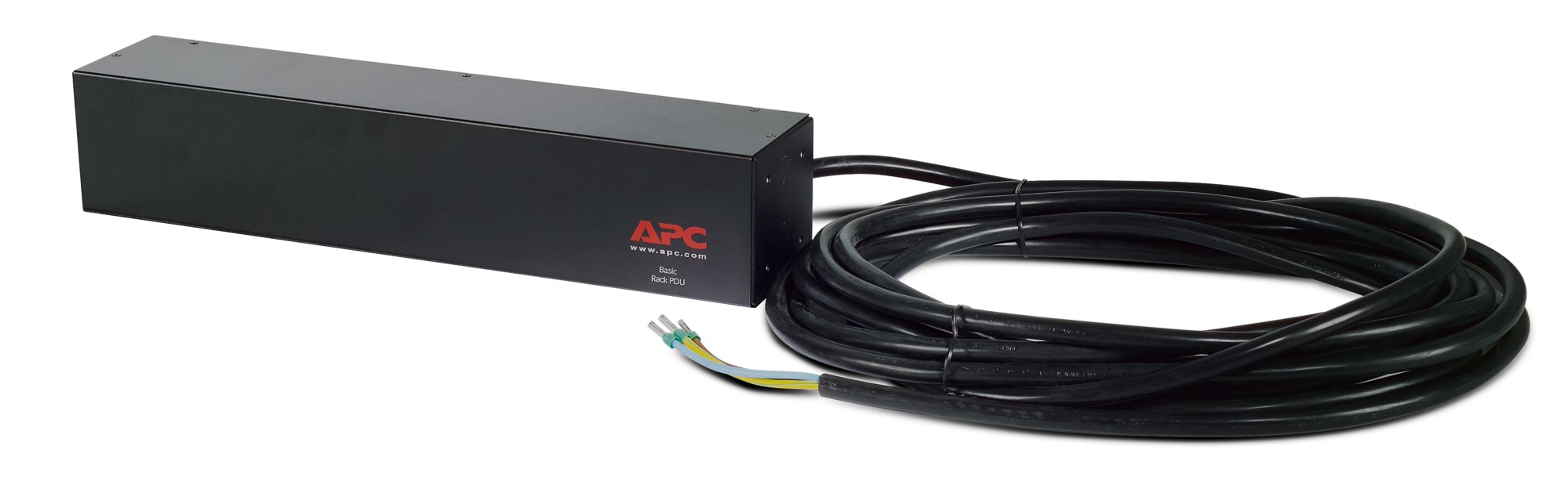

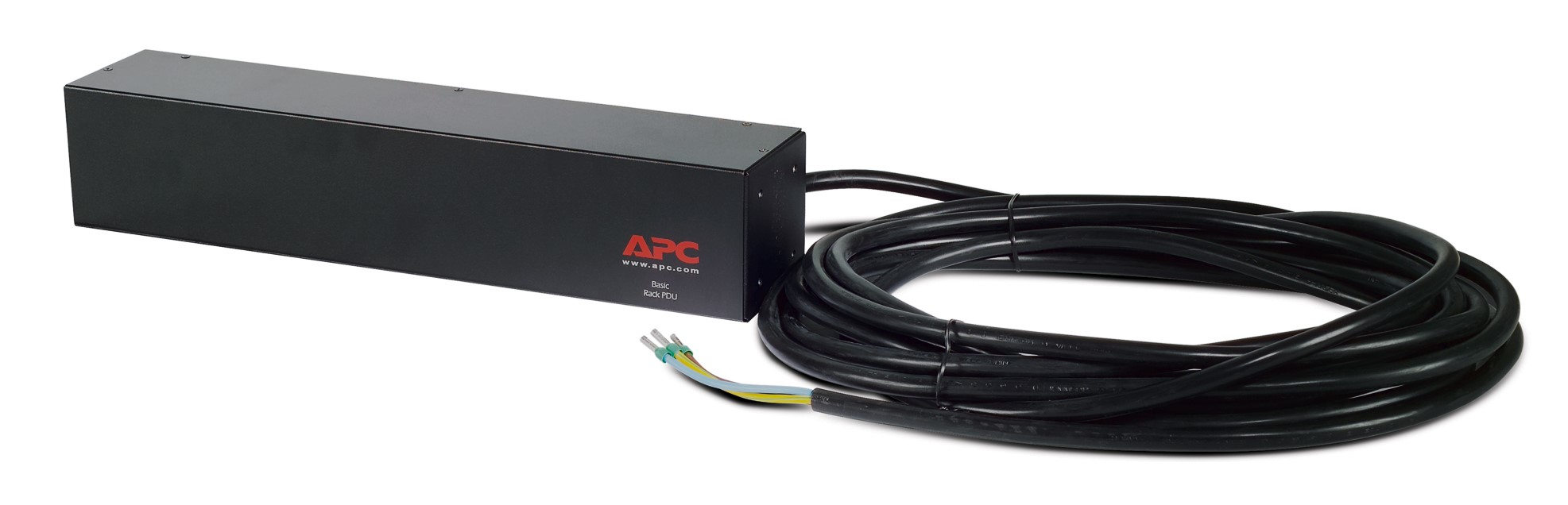

RACK PDU EXTENDER, BASIC, 2U, 32A, 230V, (4) IEC C19
Model RACK PDU EXTENDER, BASIC, 2U, 32A, 230V, (4) IEC C19Part no. AP7585EAN 042111934850
28 specifications
- Power7680 W
- Weight4.09 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity4 AC outlet(s)
- Cable length8.53 m
Overview
- Power
- 7680 W
- Weight
- 4.09 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 4 AC outlet(s)
- Cable length
- 8.53 m
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- RACK PDU EXTENDER, BASIC, 2U, 32A, 230V, (4) IEC C19
- Part number
- AP7585
- EAN / UPC
- 042111934850, 731304224181
- Also known as
- APC RACK PDU EXTENDER, BASIC, 2U, 32A, 230V, (4) IEC C19 power distribution unit (PDU) 4 AC outlet(s) Black
Specifications
28 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C19 coupler |
| Input connection type | Hard Wire 3-wire |
| Output connections | (4) IEC 320 C19 |
| I/O ports | (4) IEC 320 C19 Hard Wire 3-wire |
Features
| Specification | Value |
|---|---|
| Cable length | 8.53 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 7680 VA |
| Maximum power | 7680 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE,VDE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 89 mm |
| Height | 89 mm |
| Weight | 4.09 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5 kg |
| Package width | 521 mm |
| Package depth | 521 mm |
| Package height | 152 mm |
