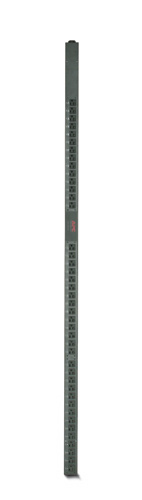

Rack PDU,Basic,ZeroU,5.7kW,120V
Model Rack PDU,Basic,ZeroU,5.7kW,120VPart no. AP7592EAN 731304223085
17 specifications
- Weight5.57 kg
- ColourBlack
- Input connection typeNEMA L21-20P
- Cable length3.05 m
- Nominal input voltage208 V
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 5.57 kg
- Colour
- Black
- Input connection type
- NEMA L21-20P
- Cable length
- 3.05 m
- Nominal input voltage
- 208 V
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack PDU,Basic,ZeroU,5.7kW,120V
- Part number
- AP7592
- EAN / UPC
- 731304223085, 7313042230858
- Also known as
- APC Rack PDU,Basic,ZeroU,5.7kW,120V power distribution unit (PDU) Black
Specifications
17 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L21-20P |
| Output connections | 42x NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Load capacity | 5700 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1778 mm |
| Weight | 5.57 kg |
